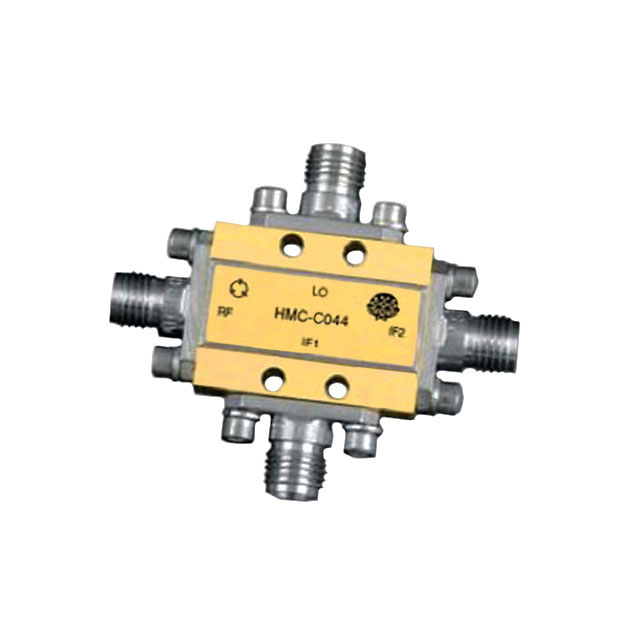

HMC-C044
I/Q MIX / IRM MODULE 15 - 23 GHZManufacturer: Analog Devices Inc.
Categories: RF Mixers
Quality Control: Learn More
Analog Devices Inc. HMC-C044 is a high-performance RF mixer module operating within the 15 GHz to 23 GHz frequency range. This component is specifically designed for VSAT applications and features an I/Q mixer configuration with two mixers integrated into a single module. The HMC-C044 is characterized by its connector mount design, utilizing SMA connectors for robust and reliable interconnection. This module is suitable for demanding applications in satellite communications, radar systems, and defense electronics where precise RF signal processing is critical. Its construction and operational bandwidth make it a valuable component for system architects and RF engineers developing advanced communication and sensing platforms.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 15GHz ~ 23GHz |
| RF Type | VSAT |
| Voltage - Supply | - |
| Gain | - |
| Current - Supply | - |
| Secondary Attributes | - |
| Noise Figure | - |
| Number of Mixers | 2 |
| Supplier Device Package | Module |
