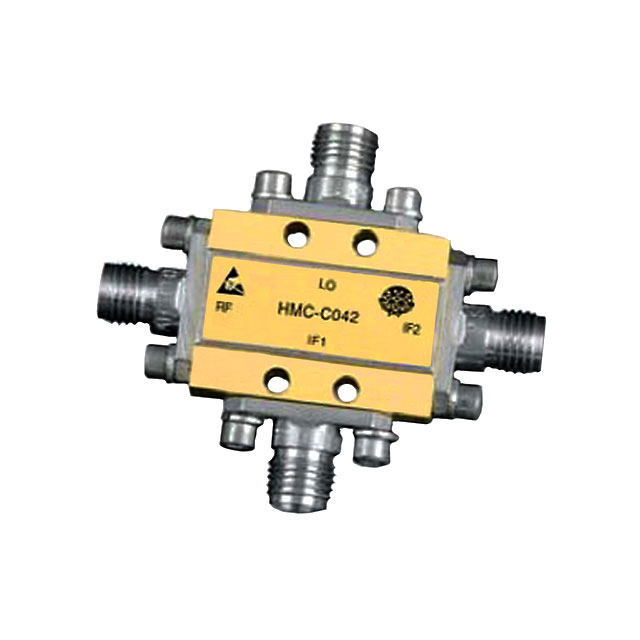

HMC-C042
I/Q MIX / IRM MODULE 8.5 - 13.5Manufacturer: Analog Devices Inc.
Categories: RF Mixers
Quality Control: Learn More
Analog Devices Inc. HMC-C042 is a high-performance I/Q mixer module designed for demanding RF applications. This RF mixer IC operates within the 8.5 GHz to 13.5 GHz frequency range, specifically targeting VSAT (Very Small Aperture Terminal) systems. The module features two mixers, providing robust signal processing capabilities. With SMA connectors for easy integration, the HMC-C042 is suitable for applications in satellite communications and radar systems where precise frequency conversion and signal integrity are paramount. The connector mount design ensures secure and reliable installation in complex RF architectures.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 8.5GHz ~ 13.5GHz |
| RF Type | VSAT |
| Voltage - Supply | - |
| Gain | - |
| Current - Supply | - |
| Secondary Attributes | - |
| Noise Figure | - |
| Number of Mixers | 2 |
| Supplier Device Package | Module |
