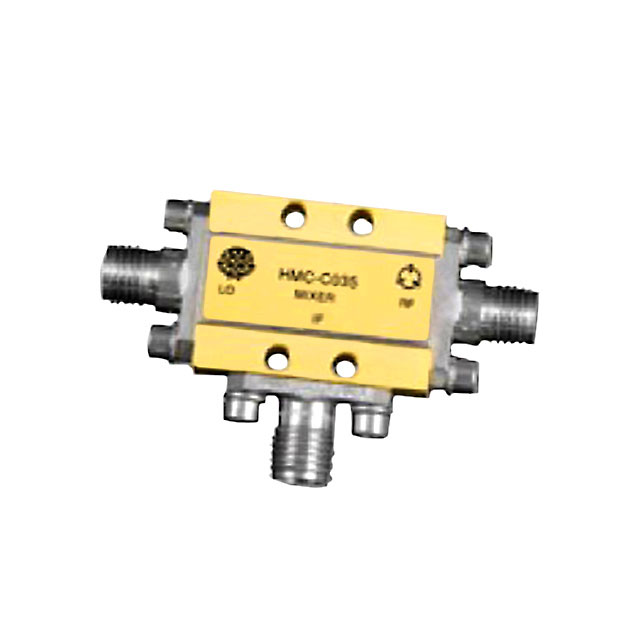

HMC-C035
DBL-BAL MIX MODULE 23 - 37 GHZManufacturer: Analog Devices Inc.
Categories: RF Mixers
Quality Control: Learn More
Analog Devices Inc. HMC-C035 is a high-performance double-balanced mixer module designed for demanding RF applications. Operating within a frequency range of 23 GHz to 37 GHz, this component is ideal for radar systems, electronic warfare, and advanced communications infrastructure. The HMC-C035 features a typical noise figure of 9 dB, ensuring excellent signal-to-noise ratio in critical detection and processing tasks. Its module form factor with SMA connectors simplifies integration into complex RF chains, offering robust connectivity and ease of assembly. This mixer's construction is optimized for reliable performance in challenging environments, supporting the stringent requirements of military, aerospace, and high-frequency test and measurement sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 23GHz ~ 37GHz |
| RF Type | Radar |
| Voltage - Supply | - |
| Gain | - |
| Current - Supply | - |
| Secondary Attributes | - |
| Noise Figure | 9dB |
| Number of Mixers | 1 |
| Supplier Device Package | Module |
