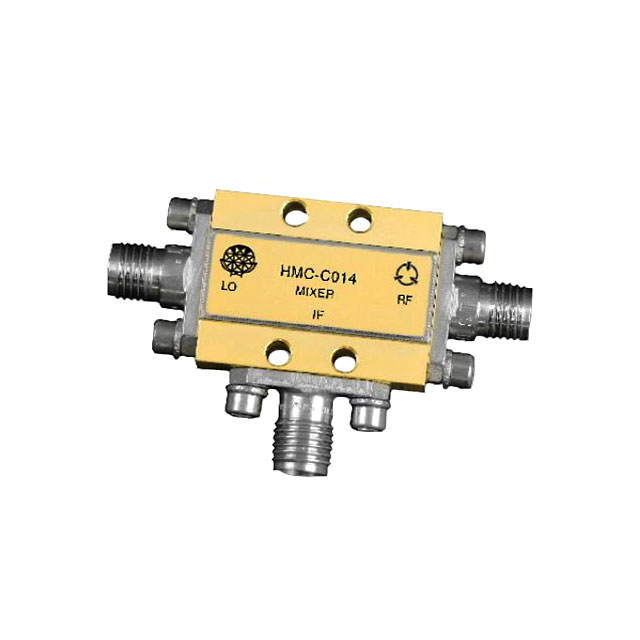

HMC-C014
DBL-BAL MIX MODULE 16 - 32 GHZManufacturer: Analog Devices Inc.
Categories: RF Mixers
Quality Control: Learn More
Analog Devices Inc. HMC-C014 is a double-balanced mixer module designed for RF applications. Operating within a frequency range of 16 GHz to 32 GHz, this component is engineered for high-performance radar systems. The HMC-C014 features a typical noise figure of 8 dB and utilizes SMA connectors for mounting. Its robust module packaging ensures reliable integration into demanding environments. This mixer is a critical component for advanced signal processing and conversion in sophisticated electronic systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 16GHz ~ 32GHz |
| RF Type | Radar |
| Voltage - Supply | - |
| Gain | - |
| Current - Supply | - |
| Secondary Attributes | - |
| Noise Figure | 8dB |
| Number of Mixers | 1 |
| Supplier Device Package | Module |
