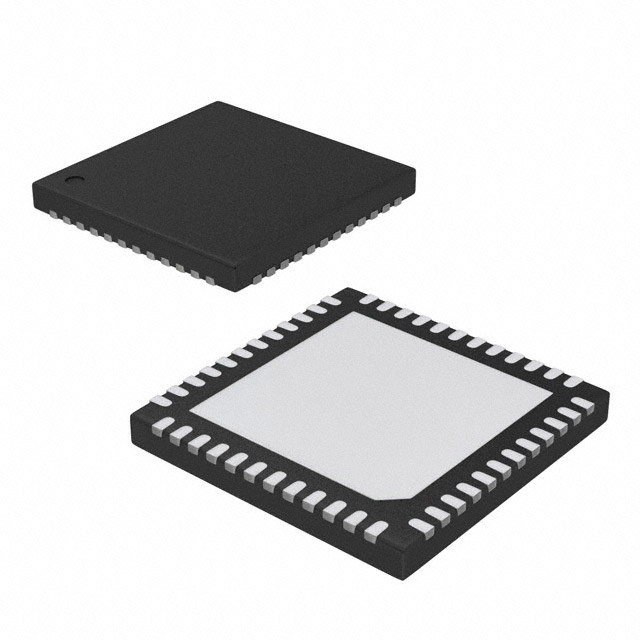

ADRF6620ACPZ-R7
IC MIXER .7-2700MHZ 48LFCSPManufacturer: Analog Devices Inc.
Categories: RF Mixers
Quality Control: Learn More
Analog Devices Inc. ADRF6620ACPZ-R7 is a high-performance RF mixer IC designed for general-purpose applications. This component integrates a Phase-Locked Loop (PLL) and Voltage-Controlled Oscillator (VCO), enabling precise frequency synthesis. Operating across a broad frequency range of 700MHz to 2.7GHz, it offers a typical conversion gain of 15dB. The ADRF6620ACPZ-R7 features a single mixer and is housed in a compact 48-LFCSP-WQ (7x7) package, suitable for surface-mount assembly. Its robust design supports supply voltages from 4.75V to 5.25V. This device is commonly utilized in wireless infrastructure, test and measurement equipment, and radar systems. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Frequency | 700MHz ~ 2.7GHz |
| RF Type | General Purpose |
| Voltage - Supply | 4.75V ~ 5.25V |
| Gain | 15dB |
| Current - Supply | - |
| Secondary Attributes | Integrated PLL and VCO |
| Noise Figure | - |
| Number of Mixers | 1 |
| Supplier Device Package | 48-LFCSP-WQ (7x7) |
Request a Quote
