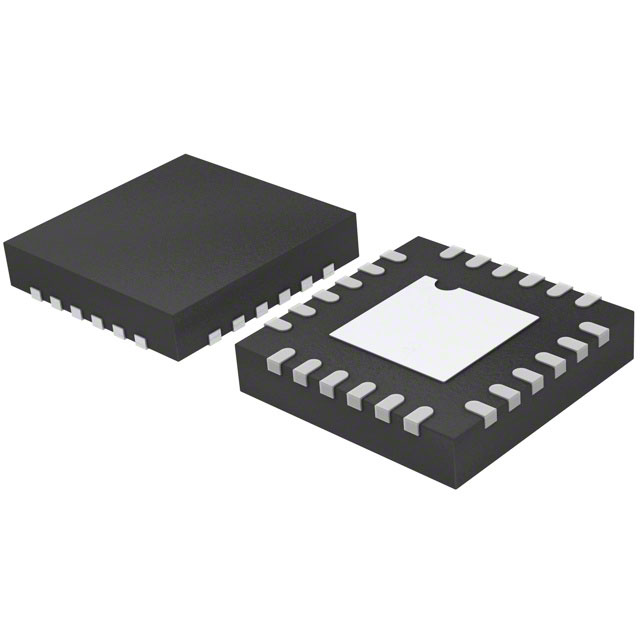

ADL5801ACPZ-R7
IC MXR 10MHZ-6GHZ UP/DWN 24LFCSPManufacturer: Analog Devices Inc.
Categories: RF Mixers
Quality Control: Learn More
RF Mixer IC Cellular Up/Down Converter 10MHz ~ 6GHz 24-LFCSP-VQ (4x3.75)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Frequency | 10MHz ~ 6GHz |
| RF Type | Cellular |
| Voltage - Supply | 4.75V ~ 5.25V |
| Gain | 1.8dB |
| Current - Supply | 130mA |
| Secondary Attributes | Up/Down Converter |
| Noise Figure | 9.75dB |
| Number of Mixers | 1 |
| Supplier Device Package | 24-LFCSP-VQ (4x3.75) |
