ADL5358ACPZ-R2
IC MIXER 0.5GHZ-1.7GHZ 36LFCSPManufacturer: Analog Devices Inc.
Categories: RF Mixers
Quality Control: Learn More
Analog Devices Inc. ADL5358ACPZ-R2 is a high-performance, dual-channel RF mixer designed for cellular infrastructure and general-purpose downconversion applications. Operating over a frequency range of 500 MHz to 1.7 GHz, this device features a typical conversion gain of 8.3 dB and a noise figure of 9.9 dB. The ADL5358 series mixer is housed in a 36-lead LFCSP-WQ package, facilitating dense surface-mount assembly. It operates from a 3.3V to 5V supply, drawing approximately 350 mA of current. This mixer is particularly suited for RF front-end designs requiring efficient signal mixing and downconversion.
Additional Information
Series: ADL5358RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

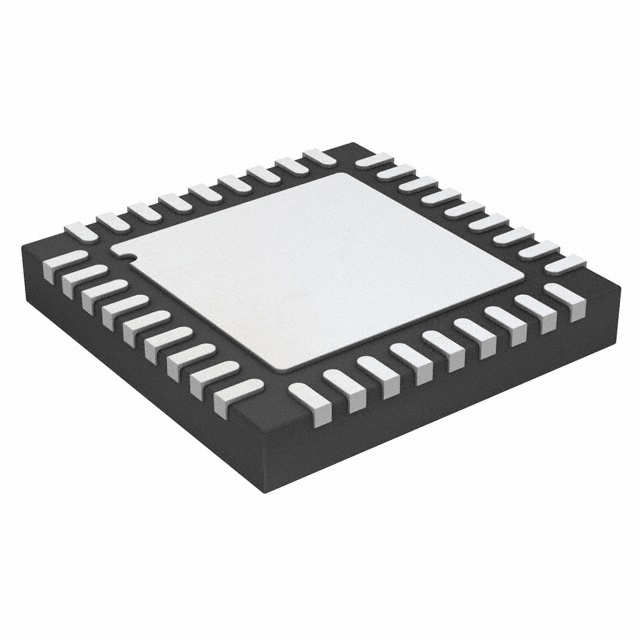

| Package / Case | 36-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Frequency | 500MHz ~ 1.7GHz |
| RF Type | Cellular |
| Voltage - Supply | 3.3V ~ 5V |
| Gain | 8.3dB |
| Current - Supply | 350mA |
| Secondary Attributes | Down Converter |
| Noise Figure | 9.9dB |
| Number of Mixers | 2 |
| Supplier Device Package | 36-LFCSP-WQ (6x6) |
