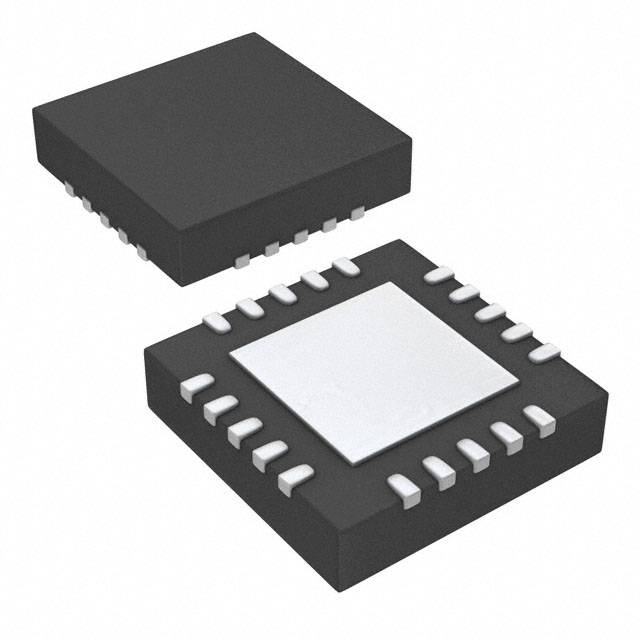

ADL5357ACPZ-R7
IC MIXER 500MHZ-1.7GHZ 20LFCSPManufacturer: Analog Devices Inc.
Categories: RF Mixers
Quality Control: Learn More
Analog Devices Inc. ADL5357ACPZ-R7 is a high-performance RF mixer designed for cellular and ISM band applications. This single-mixer component operates across a frequency range of 500MHz to 1.7GHz, offering a typical gain of 8.6dB and a noise figure of 9.1dB. The device is supplied in a compact 20-LFCSP-WQ (5x5) package, suitable for surface mount assembly. It requires a supply voltage between 3.3V and 5V, with a typical current consumption of 100mA. The ADL5357ACPZ-R7 is provided on a tape and reel for efficient high-volume manufacturing. This mixer is commonly utilized in base station infrastructure, wireless communication systems, and various RF front-end designs where precise signal mixing is critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Frequency | 500MHz ~ 1.7GHz |
| RF Type | Cellular, ISM |
| Voltage - Supply | 3.3V ~ 5V |
| Gain | 8.6dB |
| Current - Supply | 100mA |
| Secondary Attributes | - |
| Noise Figure | 9.1dB |
| Number of Mixers | 1 |
| Supplier Device Package | 20-LFCSP-WQ (5x5) |
