HMC936LP6E
IC PHASE SHIFTER DIGITAL 28-QFNManufacturer: Analog Devices Inc.
Categories: RF Misc ICs and Modules
Quality Control: Learn More
Analog Devices Inc. HMC936LP6E is a general-purpose RF IC phase shifter operating from 1.2 GHz to 1.4 GHz. This component features digital control for precise phase adjustment, making it suitable for a wide range of RF signal processing applications. Packaged in a 28-QFN (6x6) surface-mount configuration with an exposed pad, the HMC936LP6E is designed for efficient thermal management and robust signal integrity in demanding environments. Its versatility finds application in advanced wireless infrastructure, radar systems, and electronic warfare platforms, where accurate phase control is critical for signal modulation and beamforming.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |

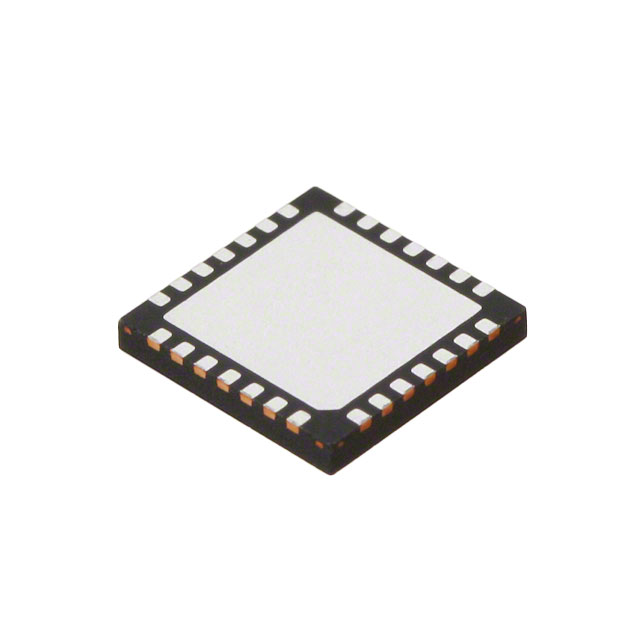

| Package / Case | 28-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Phase Shifter |
| Frequency | 1.2GHz ~ 1.4GHz |
| RF Type | General Purpose |
| Supplier Device Package | 28-QFN (6x6) |
