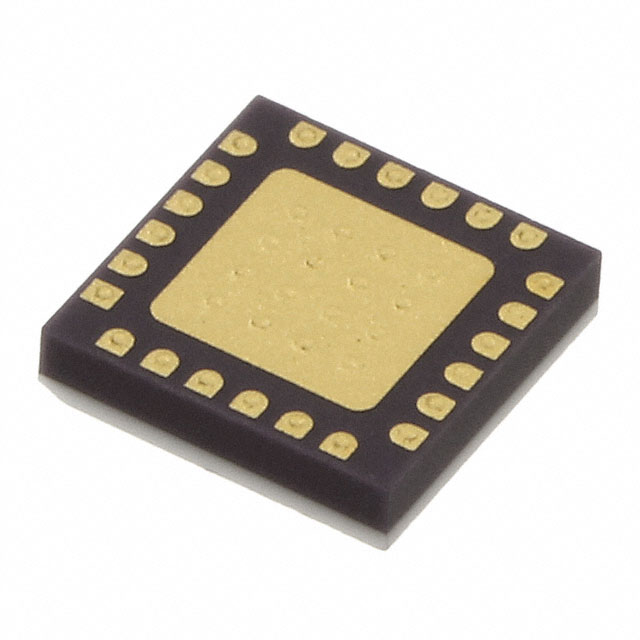

HMC543LC4B
IC PHASE SHIFTER 4BIT DGTL 24SMDManufacturer: Analog Devices Inc.
Categories: RF Misc ICs and Modules
Quality Control: Learn More
Analog Devices Inc. HMC543LC4B is a high-performance, 4-bit digital phase shifter designed for RF applications. Operating across an 8 GHz to 12 GHz frequency range, this component is ideally suited for radar systems where precise phase control is critical. The HMC543LC4B features a 24-lead CLCC (3.9x3.9 mm) surface-mount package, ensuring efficient integration into compact designs. Its digital control interface allows for straightforward implementation of various phase-shifting states, making it a versatile solution for advanced RF signal processing. This device is commonly utilized in defense, telecommunications, and electronic warfare sectors requiring robust and accurate phase manipulation.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 24-TFCQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Phase Shifter |
| Frequency | 8GHz ~ 12GHz |
| RF Type | Radar |
| Secondary Attributes | - |
| Supplier Device Package | 24-CLCC (3.9x3.9) |
Request a Quote
