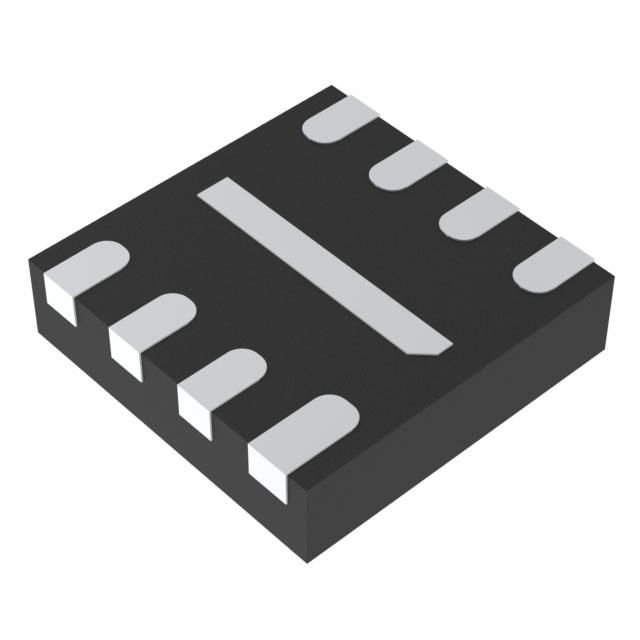

LTC5596HDC
IC RF DETECT 100MHZ-40GHZ 8DFNManufacturer: Analog Devices Inc.
Categories: RF Detectors
Quality Control: Learn More
Analog Devices Inc. LTC5596HDC is a high-performance RF detector IC designed for demanding wireless applications. This component offers precise signal strength monitoring across a wide frequency range from 100MHz to 40GHz, making it suitable for cellular and WLAN infrastructure. The LTC5596HDC features a broad input power range from -40.8dBm to 6.3dBm with an excellent accuracy of ±1dB. Its compact 8-DFN (2x2) flip chip package with an exposed pad ensures efficient thermal management for surface mount applications. Operating at a supply voltage of 3.3V and drawing a current of 30mA, this device is optimized for power efficiency in high-frequency designs. Industries benefiting from this technology include telecommunications, aerospace, and defense systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 100MHz ~ 40GHz |
| Accuracy | ±1dB |
| RF Type | Cellular, WLAN |
| Voltage - Supply | 3.3V |
| Input Range | -40.8dBm ~ 6.3dBm |
| Supplier Device Package | 8-DFN (2x2) Flip Chip |
| Current - Supply | 30 mA |
