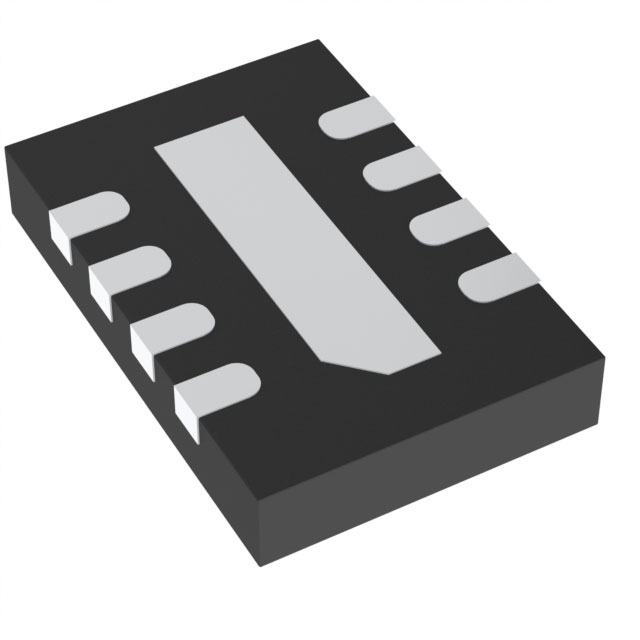

LT5581IDDB
IC RF DETECT 10MHZ-6GHZ 8DFNManufacturer: Analog Devices Inc.
Categories: RF Detectors
Quality Control: Learn More
Analog Devices Inc. LT5581IDDB is a high-performance RF detector IC designed for broadband applications from 10MHz to 6GHz. This component offers exceptional accuracy with a ±1dB specification across its operating frequency range. Its input power range spans from -34dBm to 6dBm, making it suitable for a wide variety of signal level detection tasks. Optimized for CATV systems, the LT5581IDDB also finds utility in wireless infrastructure, test and measurement equipment, and broadband communications. The device operates from a single supply voltage of 2.7V to 5.25V and consumes a low supply current of 1.4mA. It is provided in an 8-WFDFN exposed pad package, facilitating efficient surface mounting and thermal management. The 8-DFN (3x2) supplier device package ensures a compact footprint for integration into dense circuit designs.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 10MHz ~ 6GHz |
| Accuracy | ±1dB |
| RF Type | CATV |
| Voltage - Supply | 2.7V ~ 5.25V |
| Input Range | -34dBm ~ 6dBm |
| Supplier Device Package | 8-DFN (3x2) |
| Current - Supply | 1.4 mA |
