ADL6010SCPZN-R7
RF DETECTOR 6-LFCSPManufacturer: Analog Devices Inc.
Categories: RF Detectors
Quality Control: Learn More
Analog Devices Inc. RF Detector, part number ADL6010SCPZN-R7, is a general-purpose RF detector IC designed for operation across a broad frequency range of 500 MHz to 43.5 GHz. This component offers a measurement input range from -30 dBm to 15 dBm, ideal for applications requiring precise signal strength monitoring. It operates with a supply voltage of 4.75 V to 5.25 V and draws a typical supply current of 2 mA. The ADL6010SCPZN-R7 is housed in a compact 6-PowerUDFN, CSP (6-LFCSP 2x2) package, suitable for surface mounting. Its robust design makes it applicable in diverse industries including telecommunications, test and measurement equipment, and radar systems. The component is supplied on tape and reel for efficient automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

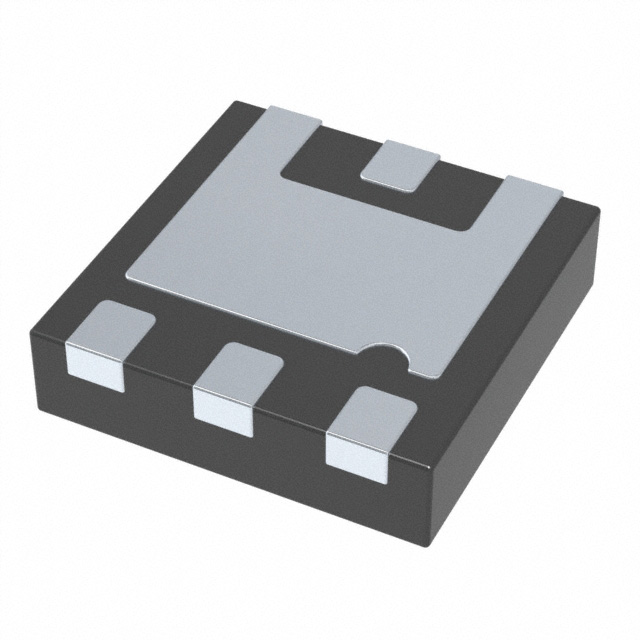

| Package / Case | 6-PowerUDFN, CSP |
| Mounting Type | Surface Mount |
| Frequency | 500MHz ~ 43.5GHz |
| Accuracy | - |
| RF Type | General Purpose |
| Voltage - Supply | 4.75V ~ 5.25V |
| Input Range | -30dBm ~ 15dBm |
| Supplier Device Package | 6-LFCSP (2x2) |
| Current - Supply | 2 mA |
