ADL6010SCPZN
MICROWAVE DETECTORManufacturer: Analog Devices Inc.
Categories: RF Detectors
Quality Control: Learn More

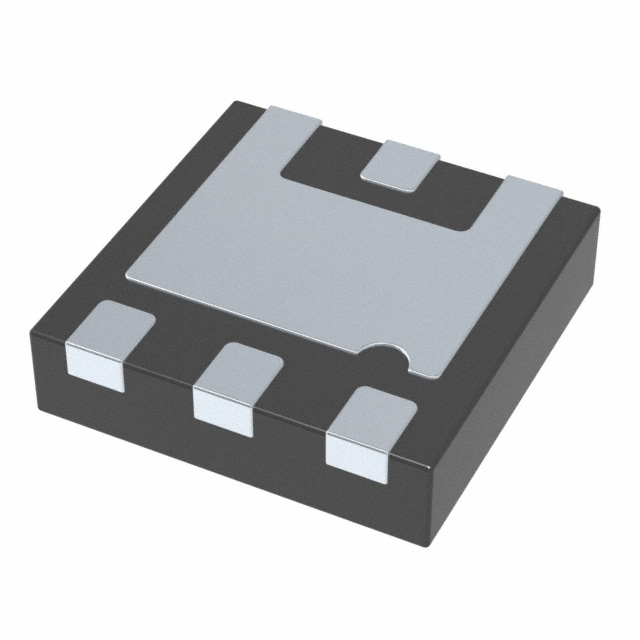

Analog Devices Inc. ADL6010SCPZN is a general-purpose RF detector IC designed for microwave applications. This component operates across a broad frequency range from 500 MHz to 43.5 GHz, accommodating input power levels from -30 dBm to 15 dBm. It features a low supply current of 2 mA and operates within a voltage supply range of 4.75 V to 5.25 V. The ADL6010SCPZN is supplied in a compact 6-LFCSP (2x2) package, suitable for surface mount assembly. This device is utilized in various industries including aerospace, defense, and test and measurement equipment where precise RF power monitoring is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 6-PowerUDFN, CSP |
| Mounting Type | Surface Mount |
| Frequency | 500MHz ~ 43.5GHz |
| Accuracy | - |
| RF Type | General Purpose |
| Voltage - Supply | 4.75V ~ 5.25V |
| Input Range | -30dBm ~ 15dBm |
| Supplier Device Package | 6-LFCSP (2x2) |
| Current - Supply | 2 mA |
