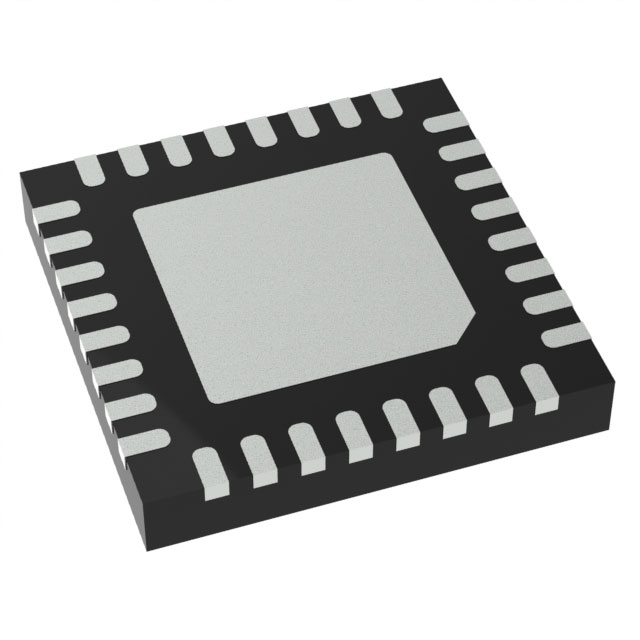

LTC5586IUH
RF DEMOD IC 300MHZ-6GHZ 32QFNManufacturer: Analog Devices Inc.
Categories: RF Demodulators
Quality Control: Learn More
Analog Devices Inc. LTC5586IUH is a versatile RF demodulator IC operating across a 300MHz to 6GHz frequency range. This device integrates a demodulator and amplifier function, offering a gain of 9.2dB. Designed for surface mount applications, it is supplied in a 32-WFQFN exposed pad package, also identified as a 32-QFN (5x5). The component draws a current of 440mA from a 5V supply. Key performance metrics include a P1dB of 12.5dBm and a noise figure of 31dB. This RF demodulator IC is suitable for use in wireless infrastructure, satellite communications, and defense electronics applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Demodulator, Amplifier |
| Voltage - Supply | 5V |
| Gain | 9.2dB |
| Noise Figure | 31dB |
| P1dB | 12.5dBm |
| LO Frequency | 300MHz ~ 6GHz |
| RF Frequency | 300MHz ~ 6GHz |
| Supplier Device Package | 32-QFN (5x5) |
| Current - Supply | 440 mA |
