ADRF6807ACPZ-R7

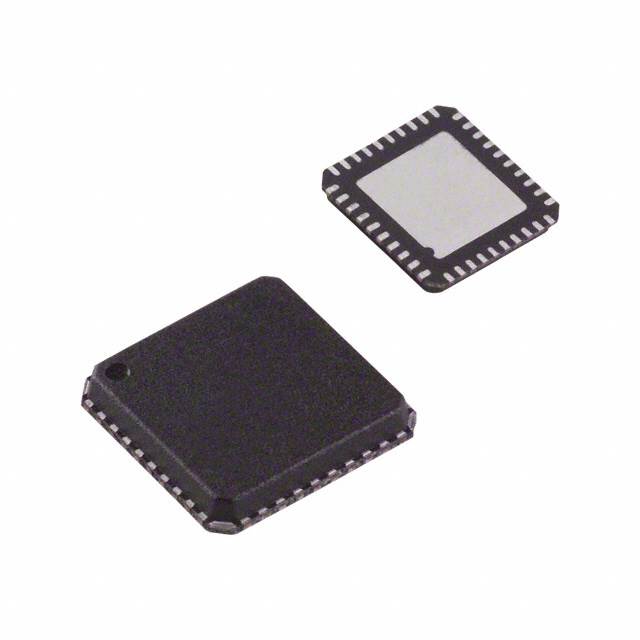

RF DEMOD IC 700MHZ-1.05GHZ 40CSPManufacturer: Analog Devices Inc.
Categories: RF Demodulators
Quality Control: Learn More
Analog Devices Inc. ADRF6807ACPZ-R7 is a highly integrated RF demodulator IC designed for operation across a 700 MHz to 1.05 GHz frequency range. This component integrates a wideband quadrature demodulator with a fractional-N phase-locked loop (PLL) synthesizer, enabling versatile RF signal processing. Key specifications include a typical supply current of 86 mA, a supply voltage range of 3.135 V to 5.25 V, and a noise figure of 13.1 dB. The device exhibits a P1dB compression point of 12.8 dBm and a gain of 4.3 dB. It is supplied in a 40-VFQFN Exposed Pad, CSP package, specifically a 40-LFCSP-VQ (6x5.75) format, suitable for surface mount applications. This RF demodulator is utilized in various wireless communication systems, including base stations and point-to-point radios. The ADRF6807ACPZ-R7 is delivered on tape and reel.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Function | Demodulator, Fractional-N PLL |
| Voltage - Supply | 3.135V ~ 5.25V |
| Gain | 4.3dB |
| Noise Figure | 13.1dB |
| P1dB | 12.8dBm |
| LO Frequency | 700MHz ~ 1.05GHz |
| RF Frequency | 700MHz ~ 1.05GHz |
| Supplier Device Package | 40-LFCSP-VQ (6x5.75) |
| Current - Supply | 86 mA |
