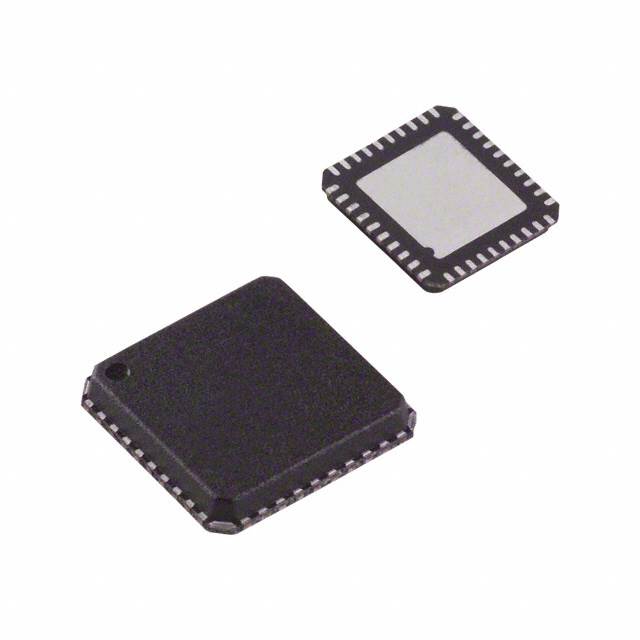

ADRF6806ACPZ-R7
RF DEMOD IC 50MHZ-525MHZ 40LFCSPManufacturer: Analog Devices Inc.
Categories: RF Demodulators
Quality Control: Learn More
Analog Devices Inc. ADRF6806ACPZ-R7 is a high-performance RF Demodulator IC operating across a 50MHz to 525MHz frequency range. This component integrates demodulator and Fractional-N PLL functionalities, designed for demanding RF applications. It features a typical supply current of 86mA with a voltage range of 4.75V to 5.25V. The device exhibits a noise figure of 12.2dB and a P1dB compression point of 12.2dBm, with a gain of 4.2dB, ensuring strong signal handling. Supplied in a 40-LFCSP-VQ (6x5.75) package, it is suitable for surface mount applications and provided on a tape and reel. The ADRF6806ACPZ-R7 is a key component in wireless infrastructure, satellite communications, and test and measurement equipment.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Function | Demodulator, Fractional-N PLL |
| Voltage - Supply | 4.75V ~ 5.25V |
| Gain | 4.2dB |
| Noise Figure | 12.2dB |
| P1dB | 12.2dBm |
| LO Frequency | 50MHz ~ 525MHz |
| RF Frequency | 50MHz ~ 525MHz |
| Supplier Device Package | 40-LFCSP-VQ (6x5.75) |
| Current - Supply | 86 mA |
