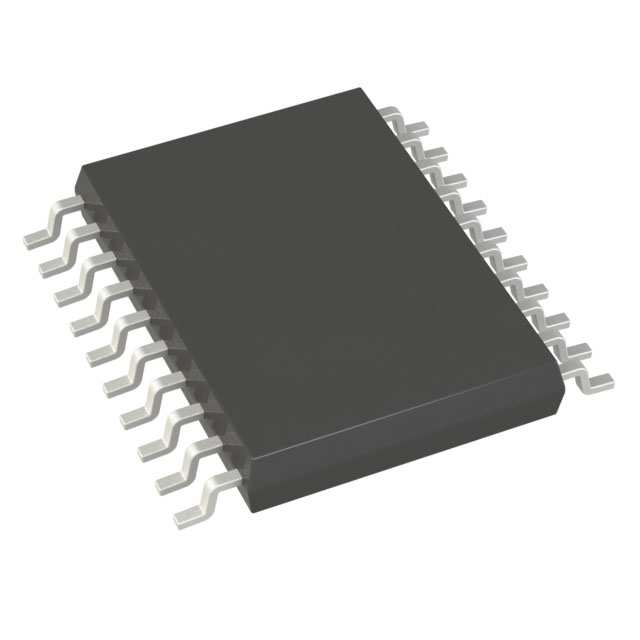

LT5524EFE
IC RF AMP GPS 0HZ-540MHZ 20TSSOPManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. LT5524EFE is a general-purpose RF amplifier designed for applications operating from DC up to 540MHz. This component offers a gain range of 4.5dB to 27dB, with a typical noise figure of 8.6dB. It is supplied in a 20-TSSOP-EP package, suitable for surface mounting. The device operates with a supply voltage between 4.75V and 5.25V, drawing a current of 44mA to 100mA. Test frequencies of 20MHz and 200MHz are specified. The LT5524EFE finds utility in various RF signal processing chains, including wireless infrastructure and test and measurement equipment.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 0Hz ~ 540MHz |
| RF Type | General Purpose |
| Voltage - Supply | 4.75V ~ 5.25V |
| Gain | 4.5dB ~ 27dB |
| Current - Supply | 44mA ~ 100mA |
| Noise Figure | 8.6dB |
| P1dB | - |
| Test Frequency | 20MHz, 200MHz |
| Supplier Device Package | 20-TSSOP-EP |
