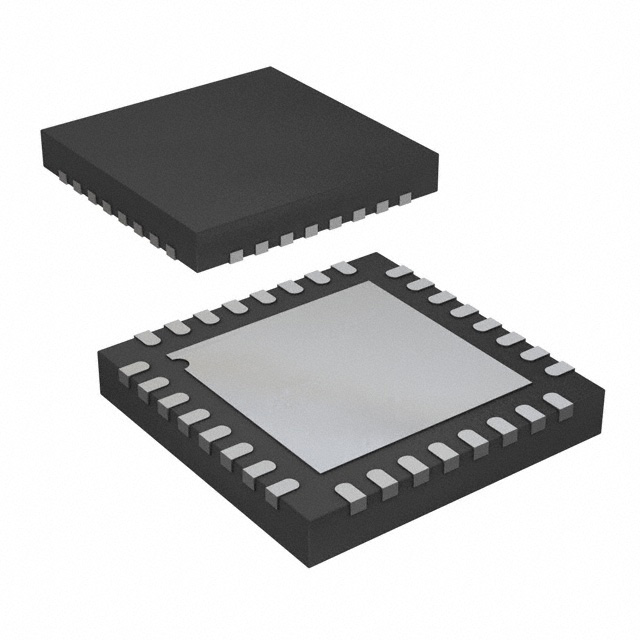

HMC8500LP5DE
IC RF AMP 10MHZ-2.8GHZ 32LFCSPManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC8500LP5DE is a high-performance RF amplifier designed for operation across a broad frequency range from 10MHz to 2.8GHz. This component offers a typical gain of 20dB and a noise figure of 5dB, making it suitable for demanding applications. The device is supplied in a 32-LFCSP-CAV (5x5) package, facilitating surface mount integration. Operating from a 28V supply, it draws a current of 100mA. The HMC8500LP5DE finds application in various industries, including telecommunications, radar systems, and electronic test and measurement equipment, where robust RF signal amplification is critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 32-LFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Frequency | 10MHz ~ 2.8GHz |
| RF Type | - |
| Voltage - Supply | 28V |
| Gain | 20dB |
| Current - Supply | 100mA |
| Noise Figure | 5dB |
| P1dB | - |
| Test Frequency | - |
| Supplier Device Package | 32-LFCSP-CAV (5x5) |
