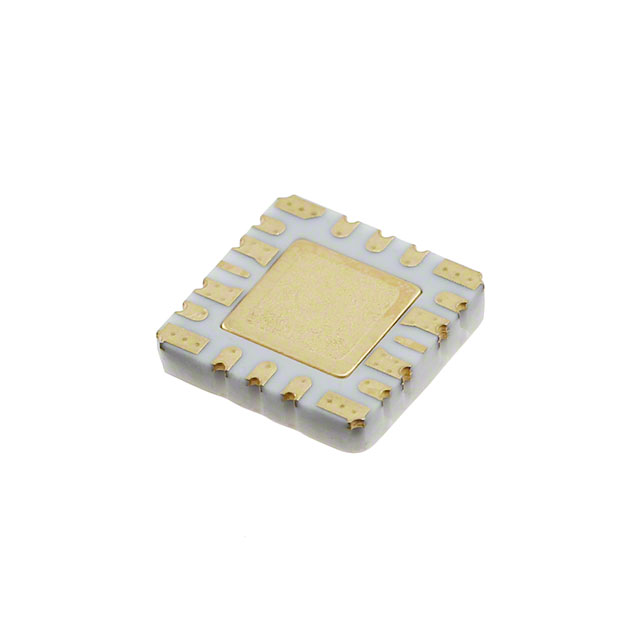

HMC7950LS6
IC RF AMP 2GHZ-28GHZ 16CLCCManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC7950LS6 is a high-performance RF amplifier IC designed for operation across a broad frequency range of 2GHz to 28GHz. This component features a 15.5dB gain at a test frequency of 2GHz, with a noise figure of 3dB and a P1dB output power of 16.5dBm. The HMC7950LS6 is housed in a compact 16-CLCC-HS (6x6) surface mount package, requiring a 5V supply voltage and drawing 64mA of current. Its robust performance characteristics make it suitable for demanding applications in the aerospace, defense, and telecommunications industries.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 16-CLCC Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 2GHz ~ 28GHz |
| RF Type | - |
| Voltage - Supply | 5V |
| Gain | 15.5dB |
| Current - Supply | 64mA |
| Noise Figure | 3dB |
| P1dB | 16.5dBm |
| Test Frequency | 2GHz ~ 5GHz |
| Supplier Device Package | 16-CLCC-HS (6x6) |
