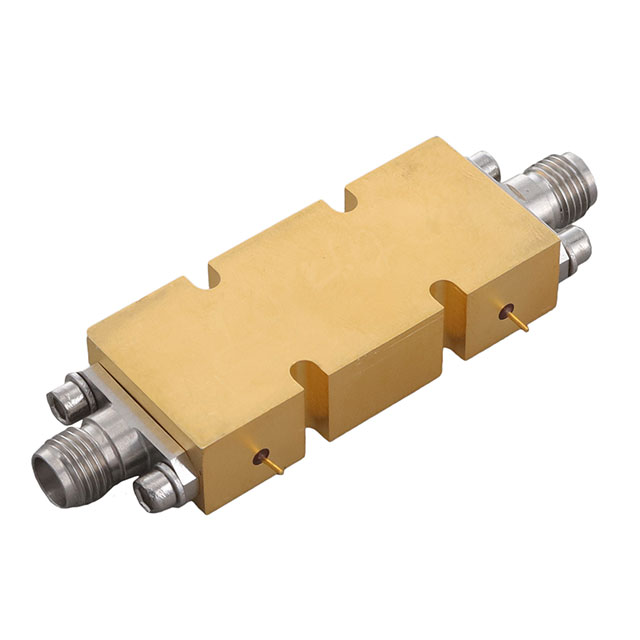

HMC7891
IC RF AMP RADAR 2GHZ-18GHZ MODManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC7891 is an RF amplifier designed for high-performance radar applications. This module operates across a broad frequency range of 2 GHz to 18 GHz, delivering a significant 47 dB of gain. The HMC7891 exhibits a noise figure of 3.4 dB, ensuring excellent signal integrity. Its P1dB output power is rated at 10 dBm, measured at 6 GHz, and it operates from an 8V supply with a typical current draw of 400mA. This component is commonly utilized in advanced radar systems, electronic warfare, and test and measurement equipment. The HMC7891 is supplied in module form.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module |
| Frequency | 2GHz ~ 18GHz |
| RF Type | Radar |
| Voltage - Supply | 8V |
| Gain | 47dB |
| Current - Supply | 400mA |
| Noise Figure | 3.4dB |
| P1dB | 10dBm |
| Test Frequency | 6GHz |
| Supplier Device Package | Module |
