HMC788LP2ETR
IC RF AMP GPS 0HZ-10GHZ 6DFNManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC788LP2ETR is a general-purpose RF amplifier IC operating from 0Hz to 10GHz. This component features a gain of 12dB and a noise figure of 9dB, with an output P1dB of 20dBm. It is supplied in a 6-DFN (2x2) exposed pad package, designed for surface mounting. The device requires a supply voltage of 5V and draws a current of 76mA. The HMC788LP2ETR is delivered on tape and reel (TR). This RF amplifier is suitable for applications in telecommunications and test and measurement equipment.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

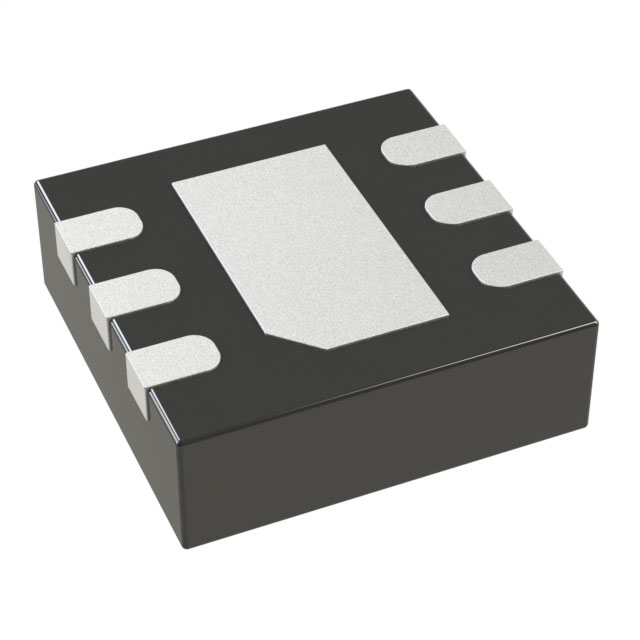

| Package / Case | 6-TDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 0Hz ~ 10GHz |
| RF Type | General Purpose |
| Voltage - Supply | 5V |
| Gain | 12dB |
| Current - Supply | 76mA |
| Noise Figure | 9dB |
| P1dB | 20dBm |
| Test Frequency | - |
| Supplier Device Package | 6-DFN (2x2) |
