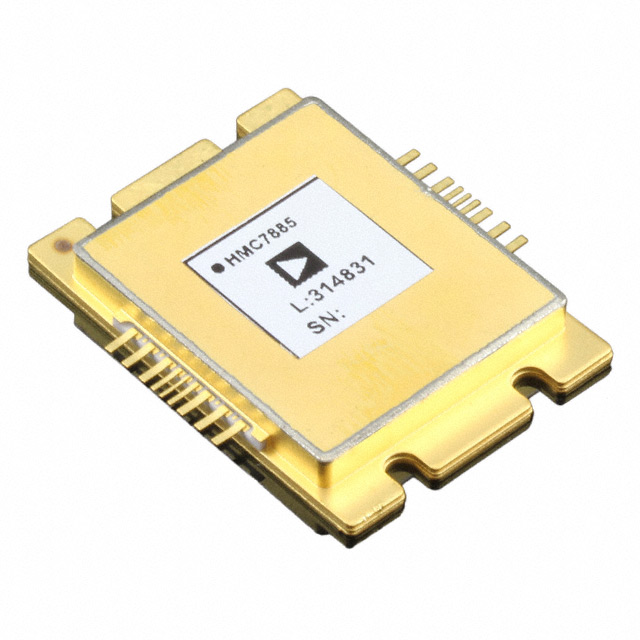

HMC7885FH18
IC RF AMP 2GHZ-6GHZ MODULEManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC7885FH18 is a high-performance RF amplifier designed for operation across a 2GHz to 6GHz frequency range. This module offers a nominal gain of 21dB at 6GHz, with a P1dB output power rating of 39dBm. The HMC7885FH18 is engineered for demanding applications requiring robust signal amplification. Its flange mount configuration ensures secure integration into complex systems. This component is suitable for use in industries such as telecommunications, radar systems, and electronic warfare. The device operates from a 28V supply and is supplied in tray packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 18-Module |
| Mounting Type | Flange Mount |
| Frequency | 2GHz ~ 6GHz |
| RF Type | - |
| Voltage - Supply | 28V |
| Gain | 21dB |
| Current - Supply | - |
| Noise Figure | - |
| P1dB | 39dBm |
| Test Frequency | 6GHz |
| Supplier Device Package | Module |
