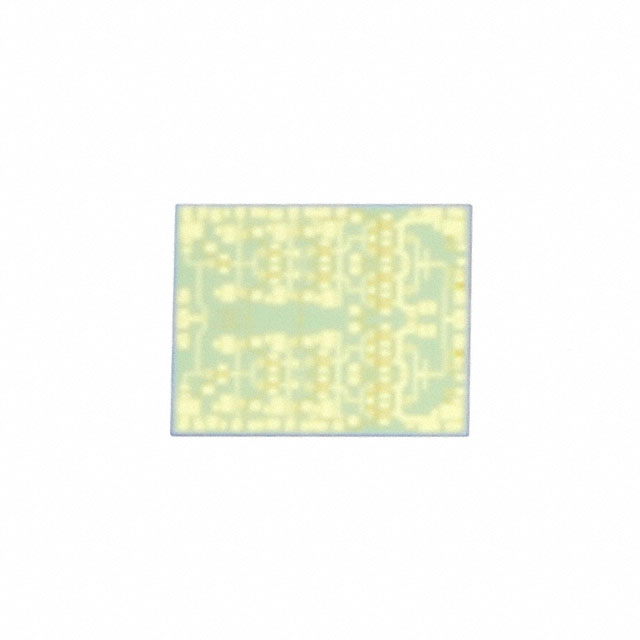

HMC7229
IC RF AMP VSAT 33GHZ-40GHZ DIEManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC7229 is a high-performance RF amplifier die designed for operation in the 33 GHz to 40 GHz frequency range. This component offers a typical gain of 23 dB and a P1dB output power of 30.5 dBm, making it suitable for demanding VSAT applications. Engineered for advanced RF system design, the HMC7229 operates from a nominal supply voltage of 5V to 6V with a current draw of 1.2A. The die form factor allows for flexible integration into custom microwave assemblies and advanced communication systems. This amplifier is commonly utilized in satellite communications and high-frequency test and measurement equipment. The product is supplied in tray packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Die |
| Mounting Type | Surface Mount |
| Frequency | 33GHz ~ 40GHz |
| RF Type | VSAT |
| Voltage - Supply | 5V ~ 6V |
| Gain | 23dB |
| Current - Supply | 1.2A |
| Noise Figure | - |
| P1dB | 30.5dBm |
| Test Frequency | - |
| Supplier Device Package | Die |
