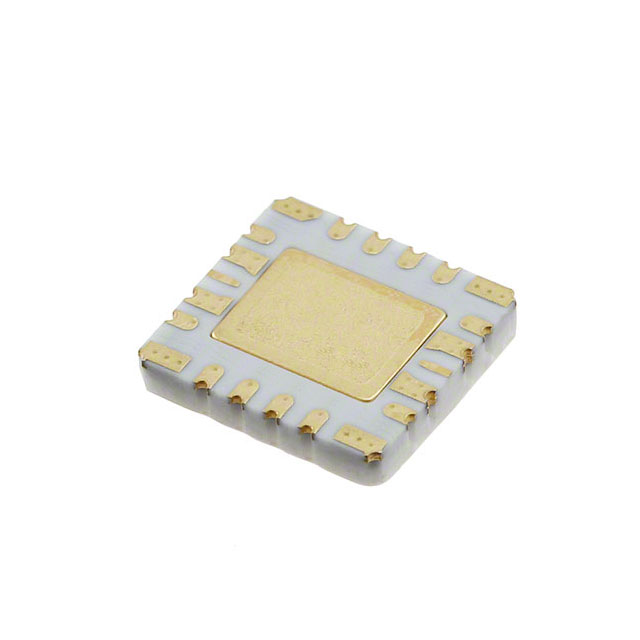

HMC6741LS7
IC RF AMP GPS 9GHZ-13GHZ 18SMTManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC6741LS7 is a high-performance RF amplifier designed for general-purpose applications within the 9GHz to 13GHz frequency range. This component features a typical small-signal gain of 34.5dB and a P1dB output power of 36dBm at 10GHz. Operating from a single 7V supply, the HMC6741LS7 draws approximately 2.4A of current. It is housed in an 18-SMT (7x7) package, suitable for surface mounting. This RF amplifier is commonly utilized in demanding applications such as satellite communications, radar systems, and electronic warfare platforms. The device is supplied on a Tape & Reel for efficient automated assembly.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 18-LQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 9GHz ~ 13GHz |
| RF Type | General Purpose |
| Voltage - Supply | 7V |
| Gain | 34.5dB |
| Current - Supply | 2.4A |
| Noise Figure | - |
| P1dB | 36dBm |
| Test Frequency | 10GHz ~ 12GHz |
| Supplier Device Package | 18-SMT (7x7) |
