HMC633LC4TR
IC AMP GPS 5.5GHZ-17GHZ 24CQFNManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
The Analog Devices Inc. HMC633LC4TR is a general-purpose RF amplifier designed for operation across a broad frequency range of 5.5GHz to 17GHz. This component features a nominal gain of 30dB and a P1dB output power of 23dBm, making it suitable for demanding RF signal chain applications. With a noise figure of 10dB, it contributes minimal added noise to the signal path. The device operates on a 5V supply voltage, drawing a current of 180mA. Packaged in a 24-TFCQFN exposed pad (4x4mm), it is designed for surface mounting. This amplifier finds application in various high-frequency systems, including telecommunications infrastructure and electronic test and measurement equipment. The HMC633LC4TR is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

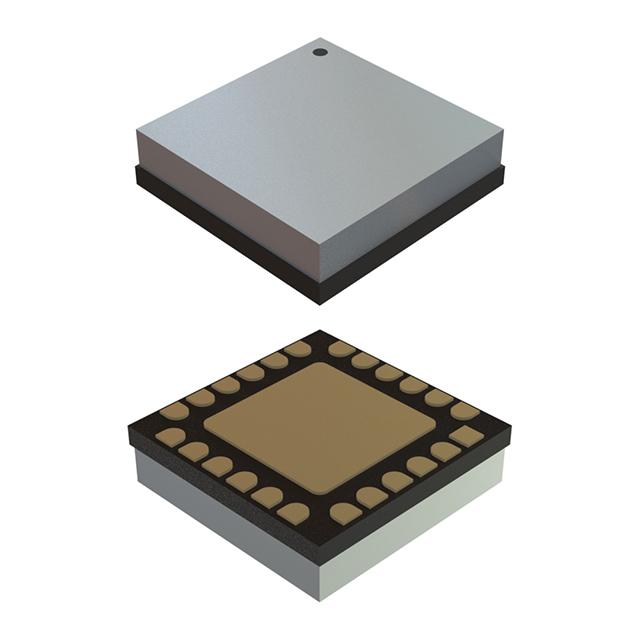

| Package / Case | 24-TFCQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 5.5GHz ~ 17GHz |
| RF Type | General Purpose |
| Voltage - Supply | 5V |
| Gain | 30dB |
| Current - Supply | 180mA |
| Noise Figure | 10dB |
| P1dB | 23dBm |
| Test Frequency | - |
| Supplier Device Package | 24-CQFN (4x4) |
