HMC5927CLS6
IC AMP VSAT 40GHZ-43.5GHZ 20CLCCManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More

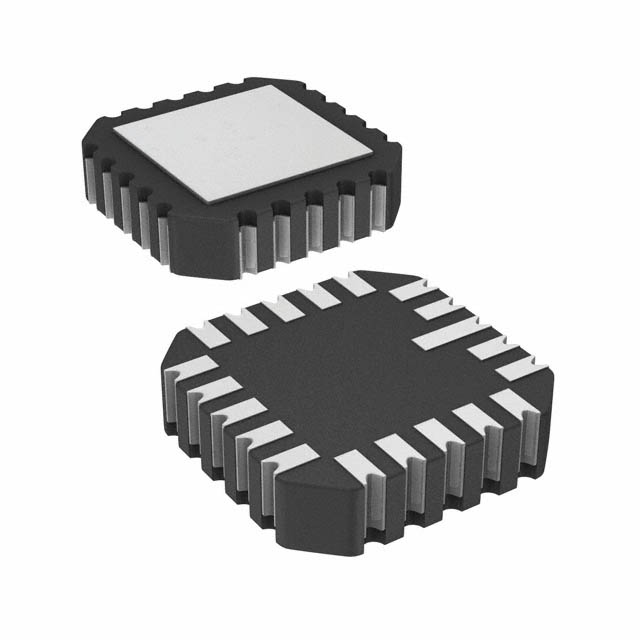

Analog Devices Inc. HMC5927CLS6 is a high-performance RF amplifier designed for VSAT applications. This component operates within the 40GHz to 43.5GHz frequency range, delivering a typical gain of 19dB at 40GHz. The amplifier features a P1dB output power of 27dBm, making it suitable for demanding transmission applications. Encased in a 20-CLCC (6x6) package with an exposed pad for enhanced thermal management, the HMC5927CLS6 is designed for surface mount assembly. It requires a supply voltage of 6V and draws a current of 900mA. This device finds utility in satellite communications and other high-frequency infrastructure.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 20-CLCC Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 40GHz ~ 43.5GHz |
| RF Type | VSAT |
| Voltage - Supply | 6V |
| Gain | 19dB |
| Current - Supply | 900mA |
| Noise Figure | - |
| P1dB | 27dBm |
| Test Frequency | 40GHz ~ 43.5GHz |
| Supplier Device Package | 20-CLCC (6x6) |
