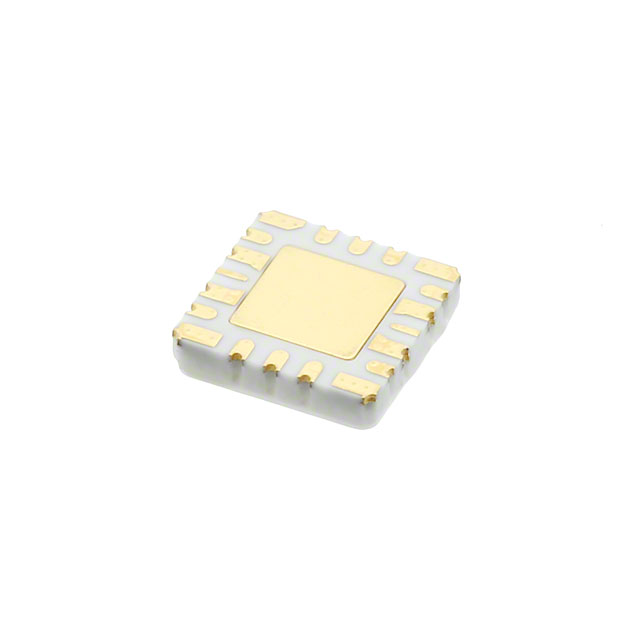

HMC5445LS6
IC RF AMP VSAT 24GHZ-27GHZ 16QFNManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC5445LS6 is a high-performance RF amplifier IC engineered for VSAT and DBS applications operating within the 24GHz to 27GHz frequency range. This component delivers a typical gain of 26dB at a 6V supply voltage, drawing 750mA of current. The output stage exhibits a P1dB of 30.5dBm, ensuring robust signal amplification. Packaged in a compact 16-QFN (6x6) with an exposed pad, the HMC5445LS6 is designed for surface mount assembly. Its specifications make it suitable for demanding satellite communication systems and other high-frequency RF front-end designs.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 16-TQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 24GHz ~ 27GHz |
| RF Type | VSAT, DBS |
| Voltage - Supply | 6V |
| Gain | 26dB |
| Current - Supply | 750mA |
| Noise Figure | - |
| P1dB | 30.5dBm |
| Test Frequency | 24GHz ~ 27GHz |
| Supplier Device Package | 16-QFN (6x6) |
