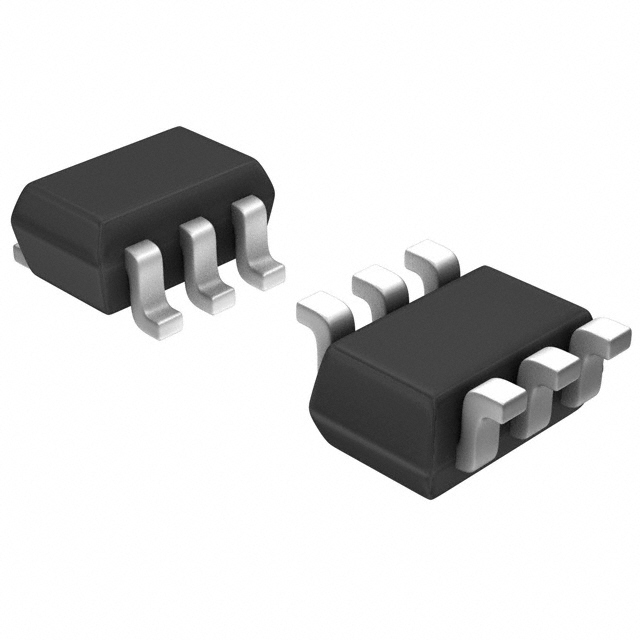

HMC474SC70ETR
IC RF AMP WIMAX 0HZ-6GHZ SC70-6Manufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC474SC70ETR is a versatile RF amplifier IC operating from 0Hz to 6GHz, ideal for WiMAX and WiBro applications. This surface mount component, packaged in an SC-70-6 (6-VSSOP, SC-88, SOT-363) format and supplied on tape and reel, offers a typical gain of 15dB and a P1dB of 8dBm at a test frequency of 5GHz. With a low noise figure of 3.9dB and a supply current of 25mA, it provides efficient amplification. The HMC474SC70ETR supports a wide supply voltage range from 3V to 10V, making it suitable for various wireless infrastructure and communication systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-VSSOP, SC-88, SOT-363 |
| Mounting Type | Surface Mount |
| Frequency | 0Hz ~ 6GHz |
| RF Type | WiMAX / WiBro |
| Voltage - Supply | 3V ~ 10V |
| Gain | 15dB |
| Current - Supply | 25mA |
| Noise Figure | 3.9dB |
| P1dB | 8dBm |
| Test Frequency | - |
| Supplier Device Package | SC-70-6 |
Request a Quote
