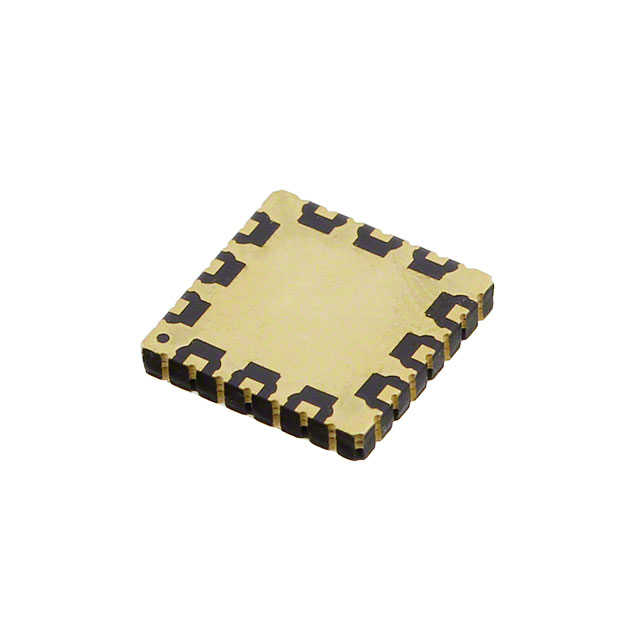

HMC463LH250
IC RF AMP GPS 2GHZ-20GHZ 12CLCCManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC463LH250 is a general-purpose RF amplifier IC covering a frequency range of 2GHz to 20GHz. This component features a 12dB gain and a 2.5dB noise figure, making it suitable for demanding RF applications. It operates with a 5V supply voltage and draws a current of 60mA. The device is housed in a 12-lead ceramic leadless chip carrier (CLCC) package with exposed pad, measuring 6.35x6.35mm, for optimal thermal performance and surface mount integration. The HMC463LH250 finds application in radar systems, electronic warfare, and high-frequency test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 12-CLCC Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 2GHz ~ 20GHz |
| RF Type | General Purpose |
| Voltage - Supply | 5V |
| Gain | 12dB |
| Current - Supply | 60mA |
| Noise Figure | 2.5dB |
| P1dB | 18dBm |
| Test Frequency | - |
| Supplier Device Package | 12-CLCC (6.35x6.35) |
