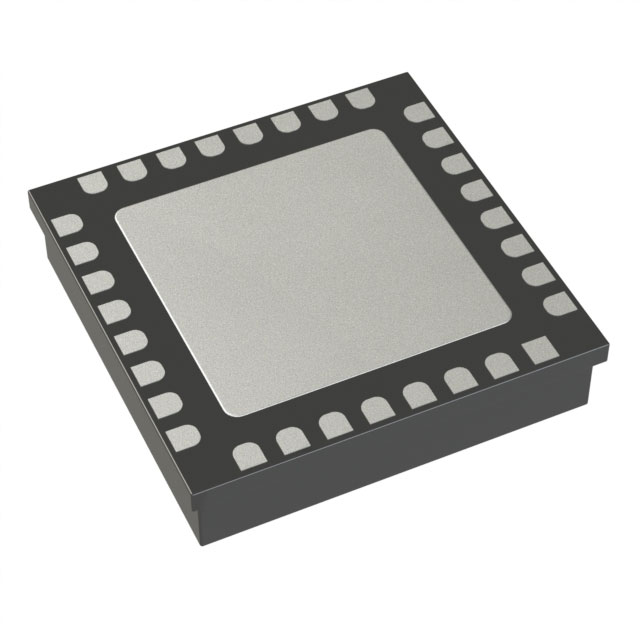

HMC460LC5TR
IC RF AMP GPS 0HZ-20GHZ 32CSMTManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC460LC5TR is a general-purpose RF amplifier designed for broadband applications from DC to 20GHz. This surface-mount component, housed in a 32-CSMT (5x5) package, offers a typical gain of 14dB at a test frequency of 10GHz, with a noise figure of 2.5dB. The device is specified with a P1dB compression point of 16dBm, indicating robust linearity. It operates from an 8V supply, drawing a current of 75mA. The HMC460LC5TR is commonly utilized in wireless infrastructure, radar systems, and electronic warfare applications where high-frequency signal amplification is critical. This component is supplied in tape and reel packaging for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-TFCQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 0Hz ~ 20GHz |
| RF Type | General Purpose |
| Voltage - Supply | 8V |
| Gain | 14dB |
| Current - Supply | 75mA |
| Noise Figure | 2.5dB |
| P1dB | 16dBm |
| Test Frequency | 10GHz |
| Supplier Device Package | 32-CSMT (5x5) |
Request a Quote
