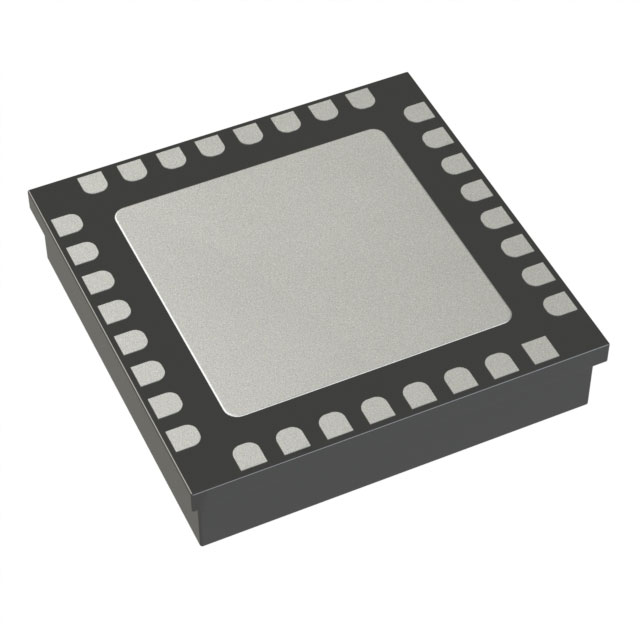

HMC460LC5
IC RF AMP GPS 0HZ-20GHZ 32CSMTManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC460LC5 is a general-purpose RF amplifier designed for a broad frequency range from 0Hz to 20GHz. This component offers a typical gain of 14dB at 10GHz, with a noise figure of 2.5dB and a P1dB of 16dBm. Operating from a single 8V supply, it draws approximately 75mA of current. The HMC460LC5 is housed in a 32-CSMT (5x5) package with an exposed pad, suitable for surface mounting. Its performance characteristics make it a reliable choice for applications in wireless infrastructure, test and measurement equipment, and defense systems where precise RF signal amplification is critical across a wide spectrum.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 32-TFCQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 0Hz ~ 20GHz |
| RF Type | General Purpose |
| Voltage - Supply | 8V |
| Gain | 14dB |
| Current - Supply | 75mA |
| Noise Figure | 2.5dB |
| P1dB | 16dBm |
| Test Frequency | 10GHz |
| Supplier Device Package | 32-CSMT (5x5) |
