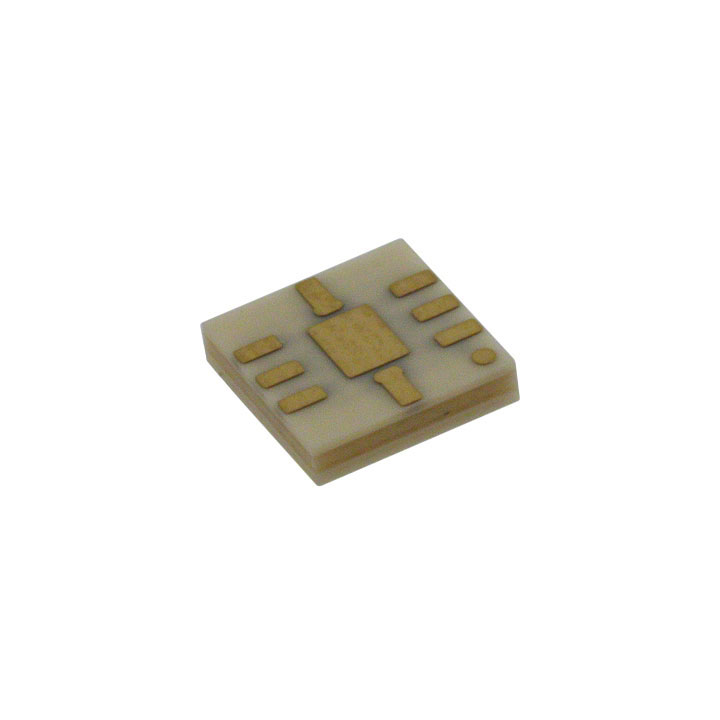

HMC442LM1
IC RF AMP GPS 17.5GHZ-24GHZ 8SMTManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC442LM1 is a general-purpose RF amplifier IC operating across a frequency range of 17.5GHz to 24GHz. This component features a typical gain of 14dB and a noise figure of 7dB, with a P1dB output power of 21.5dBm. The HMC442LM1 is housed in an 8-SMT (5.08x5.08) package, designed for surface mounting. It requires a supply voltage of 5V and draws a current of 85mA. This amplifier is suitable for applications in satellite communications, radar systems, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 8-TQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 17.5GHz ~ 24GHz |
| RF Type | General Purpose |
| Voltage - Supply | 5V |
| Gain | 14dB |
| Current - Supply | 85mA |
| Noise Figure | 7dB |
| P1dB | 21.5dBm |
| Test Frequency | - |
| Supplier Device Package | 8-SMT (5.08x5.08) |
