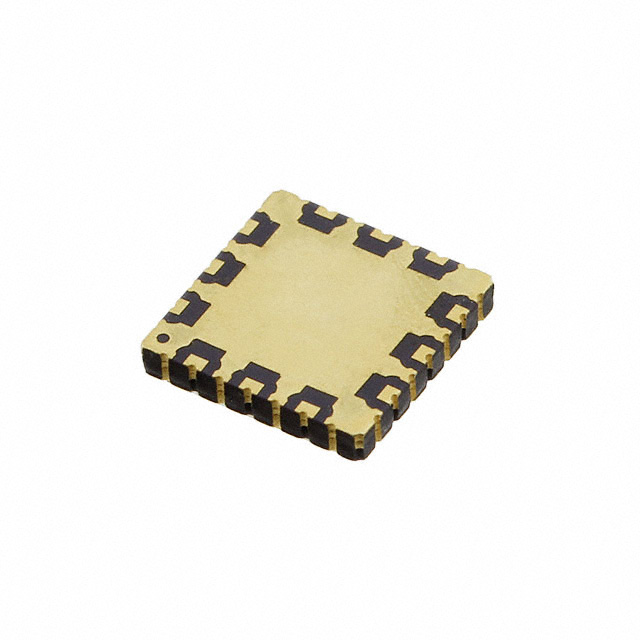

HMC441LH5
IC AMP GPS 7GHZ-15.5GHZ 12CSMTManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC441LH5 is a general-purpose RF amplifier operating from 7GHz to 15.5GHz. This component offers a typical gain of 15dB and a noise figure of 4.75dB, with a P1dB output power of 19dBm at a test frequency of 13GHz to 14GHz. It is designed for a 5V supply voltage and draws a current of 90mA. The HMC441LH5 is supplied in a 12-CSMT (5x5) surface-mount package, suitable for applications in telecommunications, radar, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 12-LCQFN |
| Mounting Type | Surface Mount |
| Frequency | 7GHz ~ 15.5GHz |
| RF Type | General Purpose |
| Voltage - Supply | 5V |
| Gain | 15dB |
| Current - Supply | 90mA |
| Noise Figure | 4.75dB |
| P1dB | 19dBm |
| Test Frequency | 13GHz ~ 14GHz |
| Supplier Device Package | 12-CSMT (5x5) |
