HMC441LC3BTR-R5
IC RF AMP VSAT 6GHZ-18GHZ 12CSMTManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC441LC3BTR-R5 is a high-performance RF amplifier IC designed for VSAT applications operating across the 6GHz to 18GHz frequency range. This component delivers a typical gain of 17dB and a noise figure of 4.5dB, ensuring excellent signal amplification with minimal noise contribution. The device offers a P1dB output power of 20dBm at a 5V supply voltage, drawing a current of 90mA. It is housed in a compact 12-CSMT (3x3) surface-mount package, specifically a 12-VFCQFN exposed pad, and is supplied on tape and reel for automated assembly. This RF amplifier is suitable for demanding applications in satellite communications and other high-frequency systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

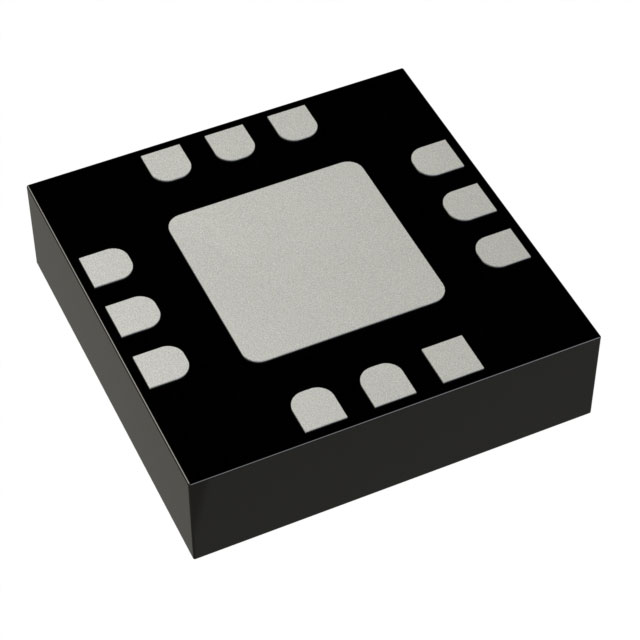

| Package / Case | 12-VFCQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 6GHz ~ 18GHz |
| RF Type | VSAT |
| Voltage - Supply | 5V |
| Gain | 17dB |
| Current - Supply | 90mA |
| Noise Figure | 4.5dB |
| P1dB | 20dBm |
| Test Frequency | 6GHz ~ 18GHz |
| Supplier Device Package | 12-CSMT (3x3) |
