HMC441LC3BTR
IC RF AMP GPS 6GHZ-18GHZ 12CSMTManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC441LC3BTR is a versatile General Purpose RF Amplifier designed for operation across a broad frequency range of 6GHz to 18GHz. This component features a nominal gain of 14dB and a noise figure of 4.5dB, suitable for applications requiring robust signal amplification. The device delivers a P1dB output power of 20dBm, ensuring linearity in demanding RF signal chains.
Engineered for efficient power management, it operates with a supply voltage of 5V and draws approximately 115mA. The HMC441LC3BTR is presented in a 12-CSMT (3x3) surface-mount package, specifically the 12-VFCQFN Exposed Pad type, conducive to high-density PCB layouts. This amplifier finds utility in various sectors, including telecommunications and defense, where precise RF performance is critical. The component is supplied on tape and reel (TR) for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

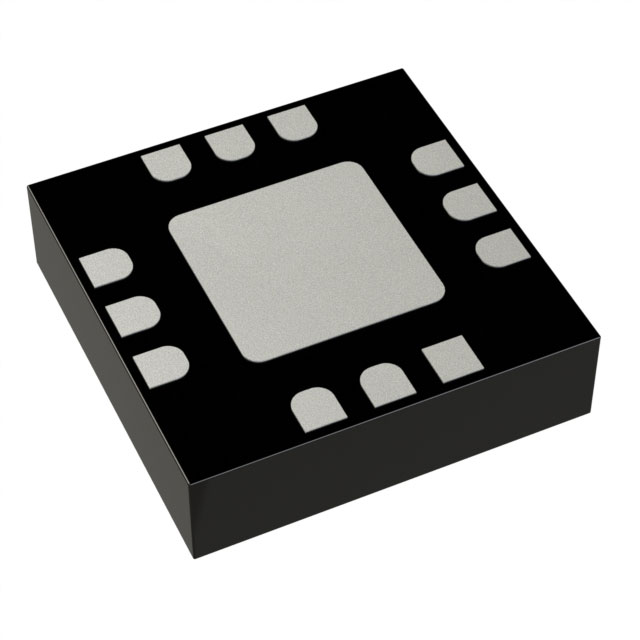

| Package / Case | 12-VFCQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 6GHz ~ 18GHz |
| RF Type | General Purpose |
| Voltage - Supply | 5V |
| Gain | 14dB |
| Current - Supply | 115mA |
| Noise Figure | 4.5dB |
| P1dB | 20dBm |
| Test Frequency | - |
| Supplier Device Package | 12-CSMT (3x3) |
