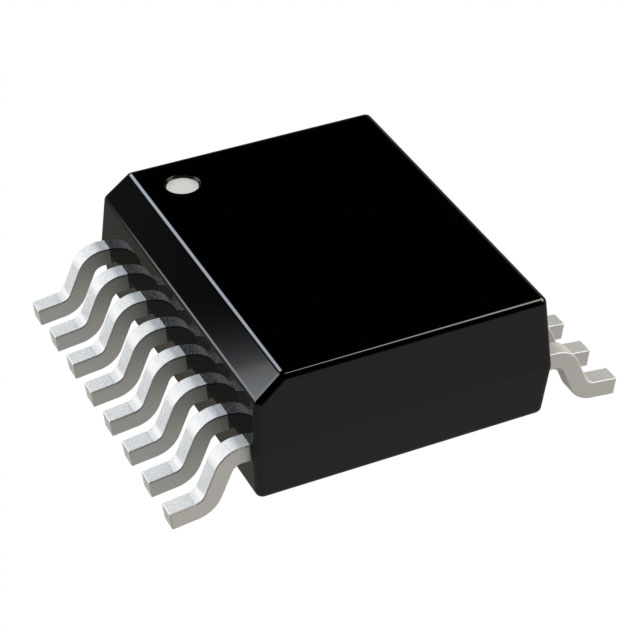

HMC413QS16G
IC AMP CELL 1.6GHZ-2.2GHZ 16QSOPManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC413QS16G is a high-performance RF amplifier designed for cellular and PCS applications. This electronic component operates within a frequency range of 1.6GHz to 2.2GHz, providing a typical gain of 23dB. The HMC413QS16G features a noise figure of 5.5dB and a P1dB output power of 27dBm, making it suitable for demanding RF front-end designs. It is supplied in a 16-QSOP-EP package with an exposed pad for enhanced thermal management, requiring surface mount installation. The component operates from a supply voltage of 2.75V to 5V, drawing a typical current of 220mA. This device is commonly utilized in wireless infrastructure and mobile communications systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 16-SSOP (0.154"", 3.90mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 1.6GHz ~ 2.2GHz |
| RF Type | Cellular, PCS |
| Voltage - Supply | 2.75V ~ 5V |
| Gain | 23dB |
| Current - Supply | 220mA |
| Noise Figure | 5.5dB |
| P1dB | 27dBm |
| Test Frequency | - |
| Supplier Device Package | 16-QSOP-EP |
