HMC372LP3E
IC AMP CDMA 700MHZ-1GHZ 16LFCSPManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC372LP3E is a high-performance RF amplifier designed for wideband applications. This component operates across a frequency range of 700MHz to 1GHz, supporting cellular standards including CDMA, GSM, EDGE, and W-CDMA. Featuring a gain of 15dB and a low noise figure of 1dB, the HMC372LP3E ensures efficient signal amplification. The device delivers a P1dB output power of 21dBm. It is housed in a compact 16-LFCSP (3x3) package, suitable for surface mount integration. The amplifier operates from a 5V supply with a typical current consumption of 100mA, making it ideal for power-sensitive designs. This RF amplifier finds application in mobile infrastructure, base stations, and other wireless communication systems where precise signal conditioning is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |

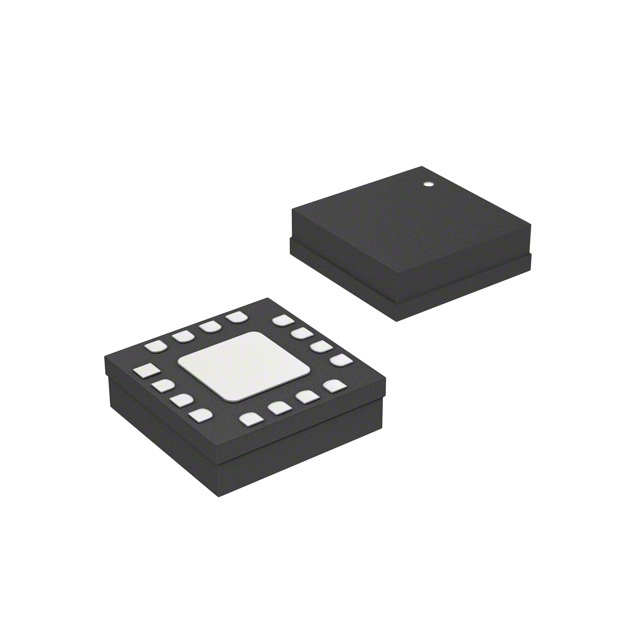

| Package / Case | 16-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Frequency | 700MHz ~ 1GHz |
| RF Type | CDMA, GSM, EDGE, W-CDMA |
| Voltage - Supply | 5V |
| Gain | 15dB |
| Current - Supply | 100mA |
| Noise Figure | 1dB |
| P1dB | 21dBm |
| Test Frequency | - |
| Supplier Device Package | 16-LFCSP (3x3) |
Request a Quote
