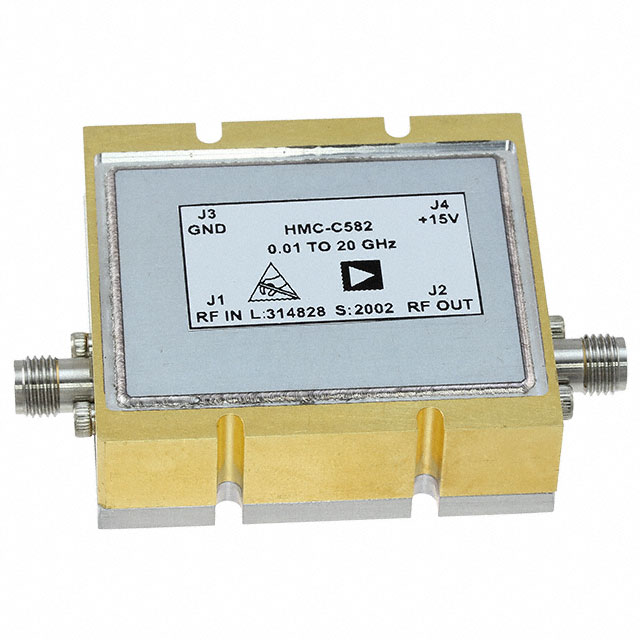

HMC-C582
IC RF AMP VSAT 10MHZ-20GHZ MODManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC-C582 is a broadband RF amplifier module operating from 10 MHz to 20 GHz. This component offers a typical gain of 24 dB and a noise figure of 6.5 dB at 20 GHz, with a P1dB output power of 26 dBm at the same test frequency. Designed for VSAT applications, it is supplied in a 4-SMD module package. The module requires a supply voltage of 15 V and draws a current of 690 mA. This device is suitable for use in satellite communications and other high-frequency RF systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | 4-SMD Module |
| Frequency | 10MHz ~ 20GHz |
| RF Type | VSAT |
| Voltage - Supply | 15V |
| Gain | 24dB |
| Current - Supply | 690mA |
| Noise Figure | 6.5dB |
| P1dB | 26dBm |
| Test Frequency | 20GHz |
| Supplier Device Package | Module |
