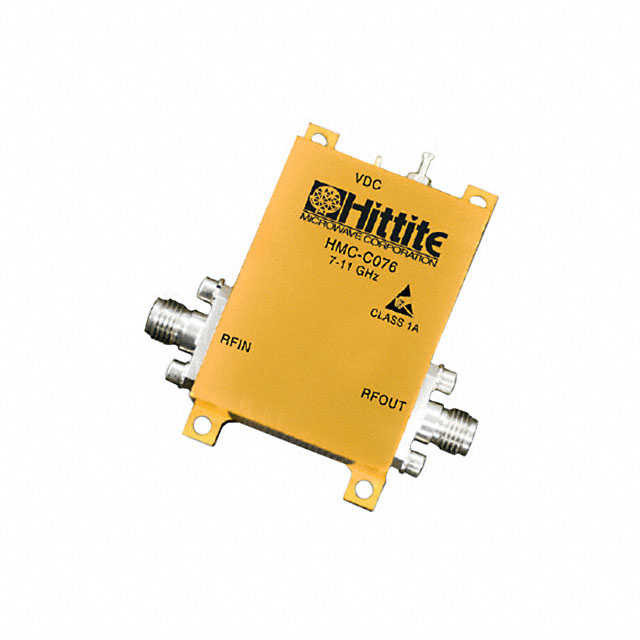

HMC-C076
IC RF AMP VSAT 7GHZ-11GHZ MODULEManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC-C076 is a high-performance RF amplifier module designed for VSAT applications operating across the 7GHz to 11GHz frequency range. This module offers a nominal gain of 9dB with a noise figure of 6dB at its test frequency, ensuring excellent signal integrity. The amplifier delivers a P1dB output power of 22dBm, suitable for demanding communication systems. It operates from a 7V supply voltage, drawing approximately 300mA of current. The HMC-C076 features SMA connectors for easy integration and is supplied in a box package. Its robust design and performance characteristics make it a valuable component in satellite communications and other high-frequency RF front-end designs.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 7GHz ~ 11GHz |
| RF Type | VSAT |
| Voltage - Supply | 7V |
| Gain | 9dB |
| Current - Supply | 300mA |
| Noise Figure | 6dB |
| P1dB | 22dBm |
| Test Frequency | - |
| Supplier Device Package | Module |
