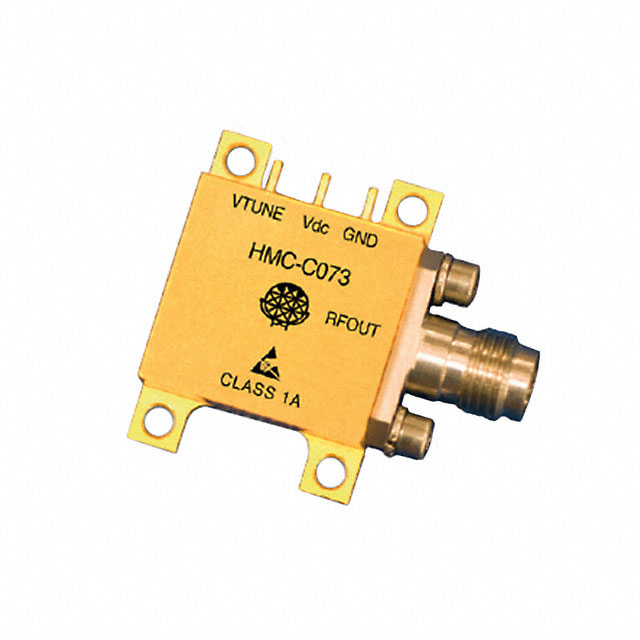

HMC-C073
IC RF AMP 38.4GHZ-43.2GHZ MODManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC-C073 is a high-performance RF amplifier module operating over the 38.4GHz to 43.2GHz frequency range. This component is designed for demanding applications requiring precise amplification in the millimeter-wave spectrum. Key specifications include a typical noise figure of 4.5dB and a P1dB output power of 20dBm, ensuring excellent signal integrity and power handling. The module features SMA connectors for easy integration and mounting via connector mount. It operates from a 5V supply with a current draw of 350mA. This device is suitable for use in advanced telecommunications, radar systems, and satellite communications infrastructure.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 38.4GHz ~ 43.2GHz |
| RF Type | - |
| Voltage - Supply | 5V |
| Gain | - |
| Current - Supply | 350mA |
| Noise Figure | 4.5dB |
| P1dB | 20dBm |
| Test Frequency | - |
| Supplier Device Package | Module |
