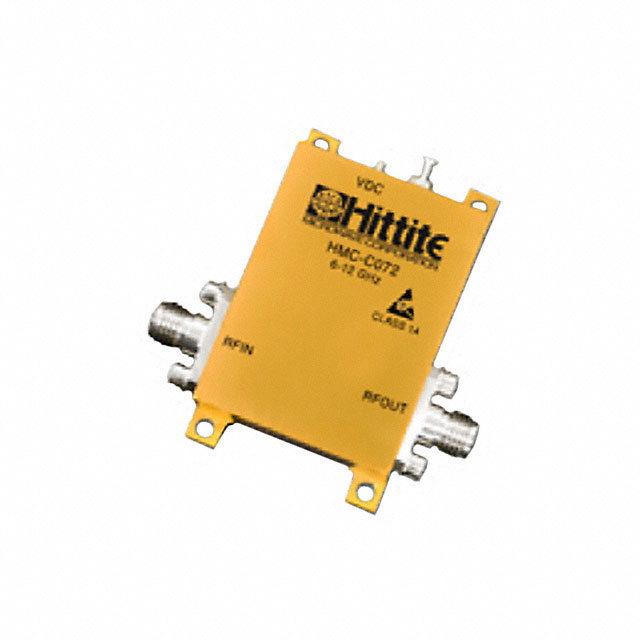

HMC-C072
IC RF AMP VSAT 6GHZ-12GHZ MODULEManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC-C072 is an RF amplifier module designed for VSAT applications operating within the 6GHz to 12GHz frequency range. This high-performance component offers a typical gain of 11dB and a noise figure of 4.5dB, ensuring excellent signal amplification with minimal added noise. The device features a P1dB compression point of 20dBm, indicating robust linearity for demanding RF systems. Powering the module requires a 7V supply with a current draw of 170mA. The HMC-C072 is supplied in a module package with SMA connectors, facilitating easy integration into systems requiring robust RF signal conditioning. This component is commonly utilized in satellite communications and other high-frequency wireless infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 6GHz ~ 12GHz |
| RF Type | VSAT |
| Voltage - Supply | 7V |
| Gain | 11dB |
| Current - Supply | 170mA |
| Noise Figure | 4.5dB |
| P1dB | 20dBm |
| Test Frequency | - |
| Supplier Device Package | Module |
