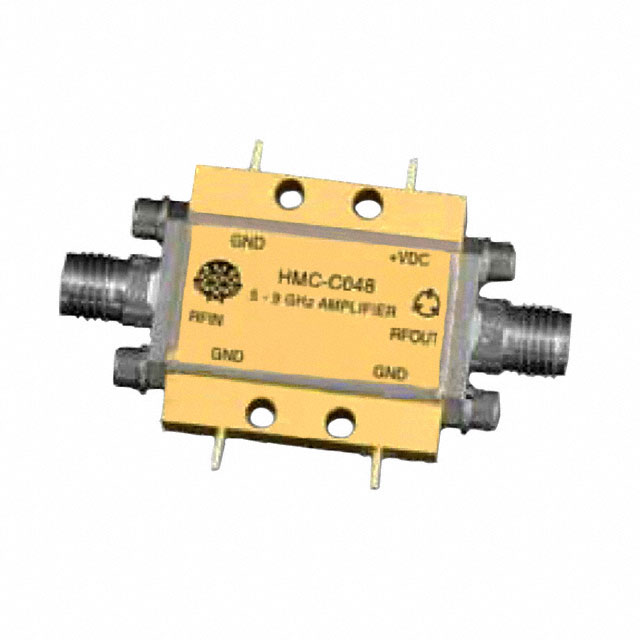

HMC-C048
IC RF AMP VSAT 5GHZ-9GHZ MODULEManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC-C048 is a high-performance RF amplifier module operating within the 5GHz to 9GHz frequency range. This component is designed for VSAT applications, delivering a typical gain of 22.5dB at a test frequency of 5GHz. With a noise figure of 1.75dB and a P1dB output power of 14.8dBm, the HMC-C048 is suitable for demanding RF signal amplification tasks. It operates from a 12V supply with a current draw of 105mA. The module features SMA connectors for mounting and is supplied in box packaging. This amplifier finds application in satellite communications and other high-frequency systems requiring robust RF performance.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: Last Time BuyPackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 5GHz ~ 9GHz |
| RF Type | VSAT |
| Voltage - Supply | 12V |
| Gain | 22.5dB |
| Current - Supply | 105mA |
| Noise Figure | 1.75dB |
| P1dB | 14.8dBm |
| Test Frequency | 5GHz |
| Supplier Device Package | Module |
Request a Quote
