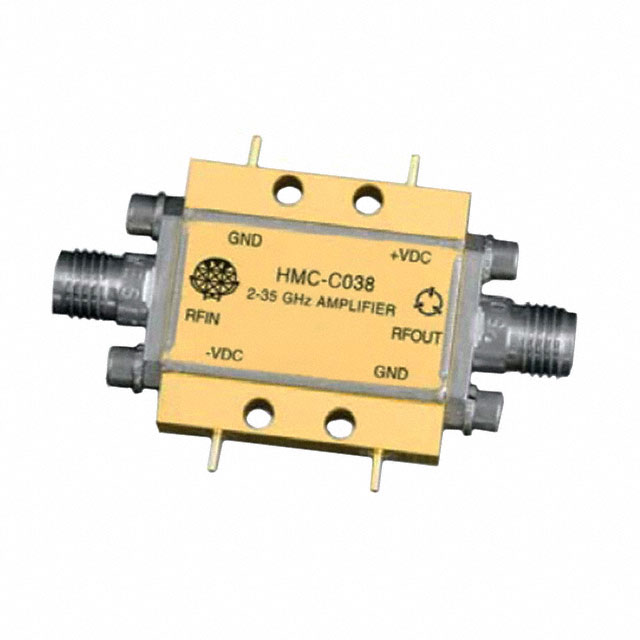

HMC-C038
IC RF AMP VSAT 2GHZ-35GHZ MODULEManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC-C038 is a broadband RF amplifier module designed for VSAT applications spanning 2GHz to 35GHz. This component offers a typical gain of 12dB and a noise figure of 6dB at its test frequency. The output third-order intercept point (IP3) is 28dBm, with a P1dB of 18dBm. It operates with a supply voltage range of 11V to 16V and draws a typical current of 92mA. The HMC-C038 features SMA connectors for mounting and is supplied in a box package. Its performance characteristics make it suitable for demanding applications within the satellite communications and high-frequency test and measurement industries.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 2GHz ~ 35GHz |
| RF Type | VSAT |
| Voltage - Supply | 11V ~ 16V |
| Gain | 12dB |
| Current - Supply | 92mA |
| Noise Figure | 6dB |
| P1dB | 18dBm |
| Test Frequency | - |
| Supplier Device Package | Module |
