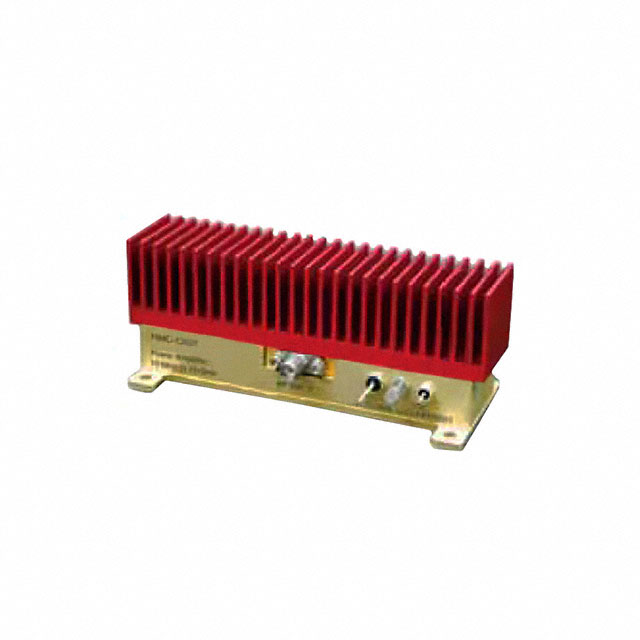

HMC-C037
IC RF AMP 10MHZ-15GHZ MODULEManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC-C037 is a high-performance RF amplifier module operating across a broad frequency range of 10MHz to 15GHz. This component offers a typical gain of 12.5dB and a P1dB of 28dBm, making it suitable for demanding RF signal amplification tasks. The module features a low noise figure of 7dB, ensuring signal integrity in sensitive applications. Powering the device requires a supply voltage between 11V and 16V, with a typical current draw of 360mA. The HMC-C037 is designed with SMA connectors for easy integration and is supplied in a box package. This RF amplifier module finds application in sectors such as telecommunications, test and measurement, and electronic warfare systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 10MHz ~ 15GHz |
| RF Type | - |
| Voltage - Supply | 11V ~ 16V |
| Gain | 12.5dB |
| Current - Supply | 360mA |
| Noise Figure | 7dB |
| P1dB | 28dbm |
| Test Frequency | - |
| Supplier Device Package | Module |
