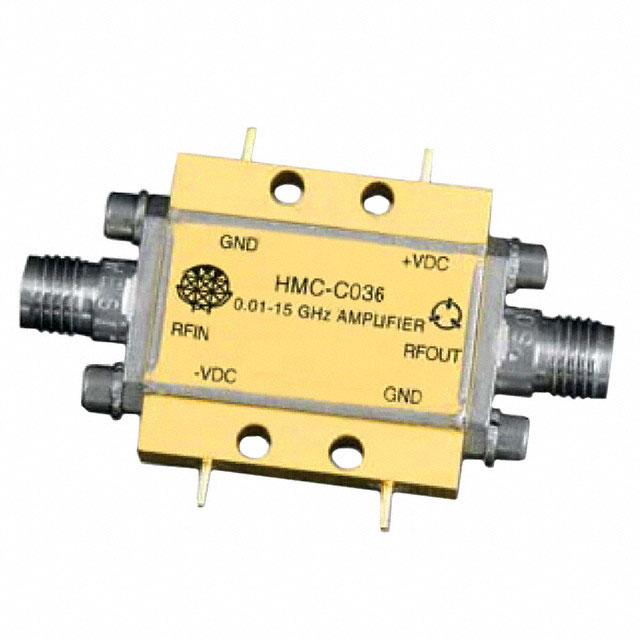

HMC-C036
IC RF AMP VSAT 10MHZ-15GHZ MODManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC-C036 is a High Linearity RF Amplifier Module designed for VSAT applications. This component operates over a broad frequency range of 10MHz to 15GHz, delivering a typical gain of 12.5dB at 28dBm P1dB. The amplifier exhibits a noise figure of 7dB, ensuring excellent signal integrity. Powering the HMC-C036 requires a supply voltage between 11V and 16V, with a current draw of 360mA. Its robust module construction with SMA connectors facilitates easy integration into systems. This RF amplifier is widely utilized in satellite communications and other high-frequency radio systems requiring precise amplification.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 10MHz ~ 15GHz |
| RF Type | VSAT |
| Voltage - Supply | 11V ~ 16V |
| Gain | 12.5dB |
| Current - Supply | 360mA |
| Noise Figure | 7dB |
| P1dB | 28dbm |
| Test Frequency | - |
| Supplier Device Package | Module |
