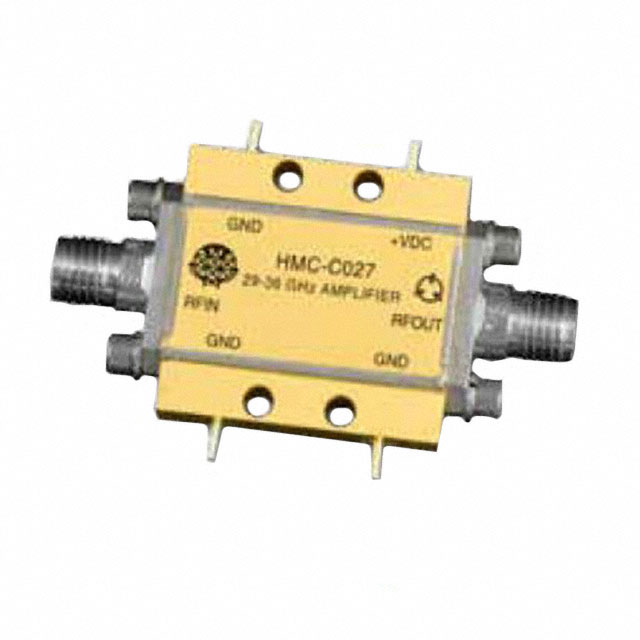

HMC-C027
IC RF AMP VSAT 29GHZ-36GHZ MODManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC-C027 is a high-performance RF amplifier module designed for VSAT applications operating within the 29GHz to 36GHz frequency range. This module provides a nominal gain of 20dB with a typical noise figure of 2.9dB at a test frequency of 30GHz. The output third-order intercept point (IP3) is 25dBm, and the P1dB compression point is 11dBm, ensuring excellent linearity for demanding communication systems.
The HMC-C027 operates from a nominal supply voltage of 3V and draws a current of 80mA. It features SMA connectors for easy integration and is supplied in a box package. This component is suitable for use in satellite communications, radar systems, and other high-frequency transmission and reception applications where precise amplification and low noise are critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 29GHz ~ 36GHz |
| RF Type | VSAT |
| Voltage - Supply | 3V |
| Gain | 20dB |
| Current - Supply | 80mA |
| Noise Figure | 2.9dB |
| P1dB | 11dBm |
| Test Frequency | - |
| Supplier Device Package | Module |
