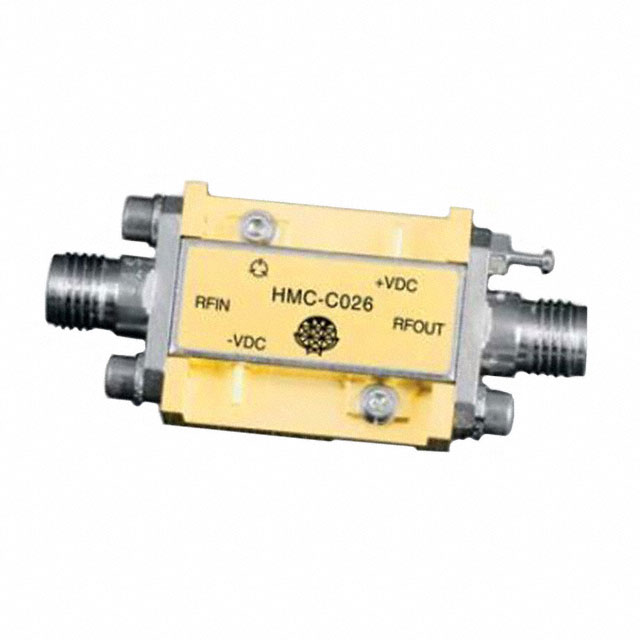

HMC-C026
IC RF AMP VSAT 2GHZ-20GHZ MODULEManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC-C026 is a high-performance RF amplifier module designed for demanding VSAT applications. This component operates across a broad frequency range of 2GHz to 20GHz, offering a significant 31dB of gain. With a noise figure of 3.5dB and a P1dB output power of 26dBm, it ensures excellent signal integrity and power efficiency. The HMC-C026 is suitable for applications requiring robust RF performance in aerospace, defense, and satellite communications. It features connector mount type with SMA connectors and is supplied in a box package. Power requirements range from 11V to 16V with a typical current draw of 400mA.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 2GHz ~ 20GHz |
| RF Type | VSAT |
| Voltage - Supply | 11V ~ 16V |
| Gain | 31dB |
| Current - Supply | 400mA |
| Noise Figure | 3.5dB |
| P1dB | 26dBm |
| Test Frequency | 2GHz ~ 20GHz |
| Supplier Device Package | Module |
