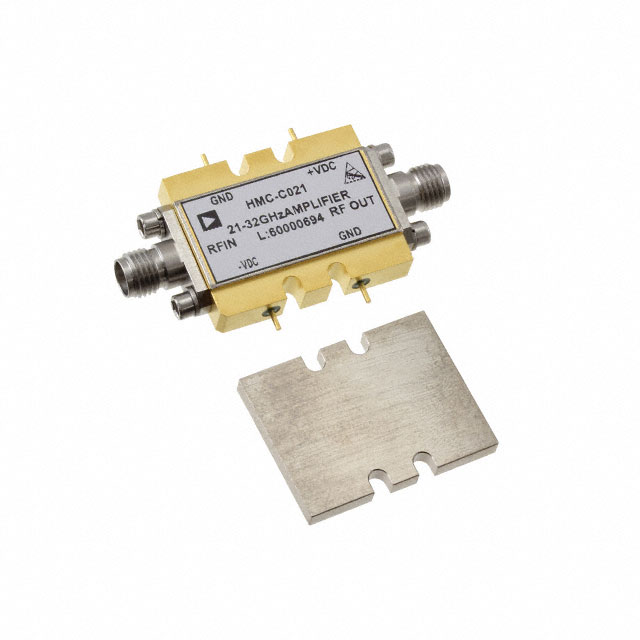

HMC-C021
IC RF AMP VSAT 21GHZ-31GHZ MODManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC-C021 is a high-performance RF amplifier module designed for operation within the 21GHz to 31GHz frequency range. This module features a typical gain of 16dB and a noise figure of 5dB, making it suitable for demanding VSAT applications. The output power at 1dB compression (P1dB) is 23dBm. Power is supplied via an 8V to 15V input, with a typical current draw of 215mA. The HMC-C021 is housed in a module with SMA connectors for easy integration into systems. Its robust performance characteristics position it for use in satellite communications and point-to-point radio systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 21GHz ~ 31GHz |
| RF Type | VSAT |
| Voltage - Supply | 8V ~ 15V |
| Gain | 16dB |
| Current - Supply | 215mA |
| Noise Figure | 5dB |
| P1dB | 23dBm |
| Test Frequency | - |
| Supplier Device Package | Module |
