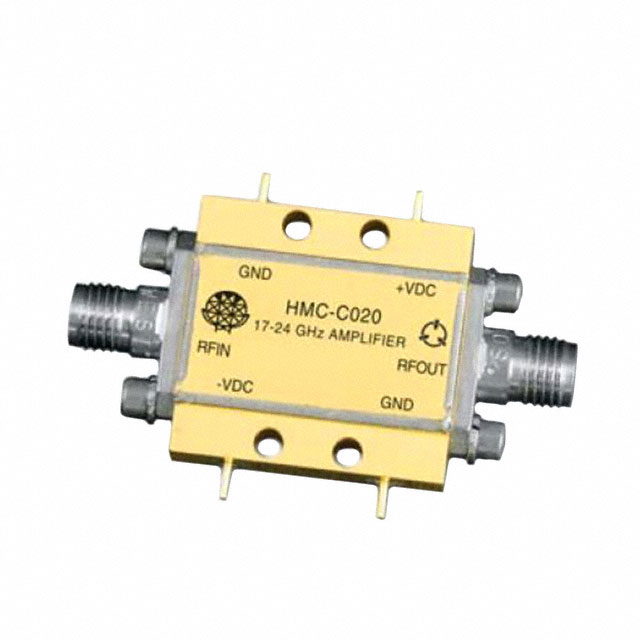

HMC-C020
IC RF AMP VSAT 17GHZ-24GHZ MODManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC-C020 is a high-performance RF amplifier module designed for operation within the 17 GHz to 24 GHz frequency range. This module delivers a typical small-signal gain of 22 dB, with a noise figure of 4.5 dB at 17 GHz to 20 GHz, ensuring excellent signal reception and amplification. The output P1dB is rated at 24 dBm, providing robust power handling capabilities. The HMC-C020 operates with a supply voltage between 8V and 15V, drawing a current of 250 mA. It features connector mount installation with SMA connectors, facilitating integration into VSAT systems and other satellite communication applications. This component is suitable for use in demanding aerospace and defense applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 17GHz ~ 24GHz |
| RF Type | VSAT |
| Voltage - Supply | 8V ~ 15V |
| Gain | 22dB |
| Current - Supply | 250mA |
| Noise Figure | 4.5dB |
| P1dB | 24dBm |
| Test Frequency | 17GHz ~ 20GHz |
| Supplier Device Package | Module |
